1-channel power supply support circuit, SOT-143-4 package, surface mount. Features active low push-pull output, with reset threshold voltage ranging from 2.58V to 2.68V. Operates with a supply voltage from 1V to 5.5V, drawing a maximum supply current of 10µA. Offers a reset delay time of 560ms and a reset timeout of 140ms. RoHS compliant, with a maximum operating temperature of 85°C and a power dissipation of 200mW.
PackageSOT-143-4
Current10uA
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Analog Devices ADM811RARTZ-REEL technical specifications.
General
| Package/Case | SOT-143-4 |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 200mW |
| Max Reset Threshold Voltage | 2.68V |
| Min Reset Threshold Voltage | 2.58V |
| Max Supply Current | 10uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Monitored Inputs | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 15uA |
| Output | TOTEM-POLE |
| Output Type | PUSH-PULL |
| Overvoltage Threshold | 2.68V |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reset | Active Low |
| Reset Delay Time | 560ms |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 10uA |
| Threshold Voltage | 2.63V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.58V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADM811RARTZ-REEL Datasheet
Download the complete datasheet for Analog Devices ADM811RARTZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

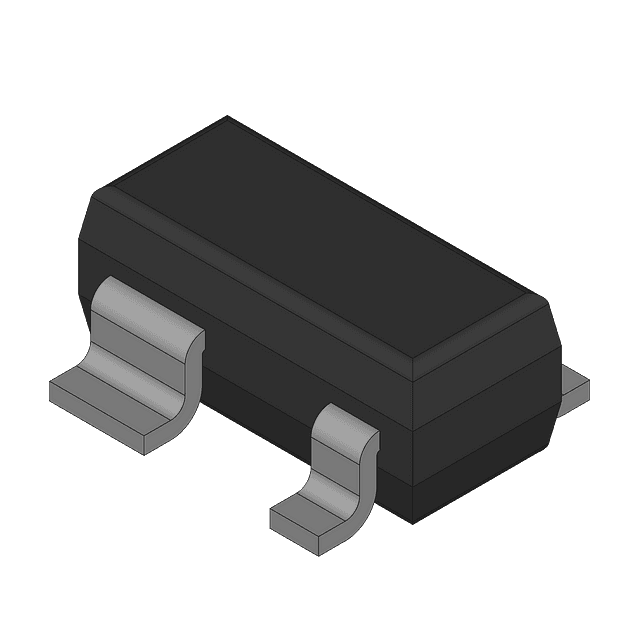

Product Images
