Microprocessor supervisory circuit, surface mount, in a 4-lead SOT package (1.3mm W x 2.9mm L x 0.9mm H). Features a logic-low reset bar output with a reset delay time of 560ms and reset timeout of 140ms. Monitors a single voltage with a threshold range of 3.03V to 3.14V. Operates from 1V to 5.5V supply voltage, with a maximum supply current of 10uA. Maximum power dissipation is 200mW, with an operating temperature range of -40°C to 85°C.
PackageSOT
Current10uA
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Analog Devices ADM811TARTZ-REEL7 technical specifications.
General
Package/Case
SOT
Height
0.9mm
Lead Free
Contains Lead
Length
2.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
200mW
Max Reset Threshold Voltage
3.14V
Min Reset Threshold Voltage
3.03V
Max Supply Current
10uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Outputs
1
Number of Voltages Monitored
1
Operating Supply Current
15uA
Output
TOTEM-POLE
Output Current
20mA
Output Type
PUSH-PULL
Overvoltage Threshold
3.14V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Delay Time
560ms
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
10uA
Threshold Voltage
3.08V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.03V
Watchdog Timer
No
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM811TARTZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADM811TARTZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

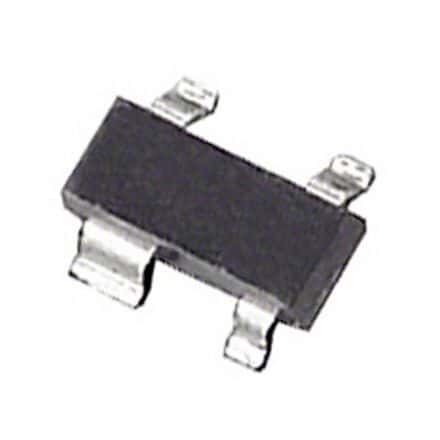

Product Images
