Low voltage supervisory circuit with watchdog timer, designed for power management applications. Features a reset threshold voltage range of 2.85V to 3V, with a 140ms reset timeout. Operates from a 1V to 5.5V supply voltage, consuming a maximum of 20uA. This surface mount component, packaged in SC70, offers a single monitored input and a push-pull output. Suitable for operation between -40°C and 85°C.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM8616SCYAKSZ-RL7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
3V
Min Reset Threshold Voltage
2.85V
Max Supply Current
20uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
20uA
Output
TOTEM-POLE
Output Type
PUSH-PULL
Overvoltage Threshold
3V
Packaging
Tape and Reel
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Threshold Voltage
2.93V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.85V
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM8616SCYAKSZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADM8616SCYAKSZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

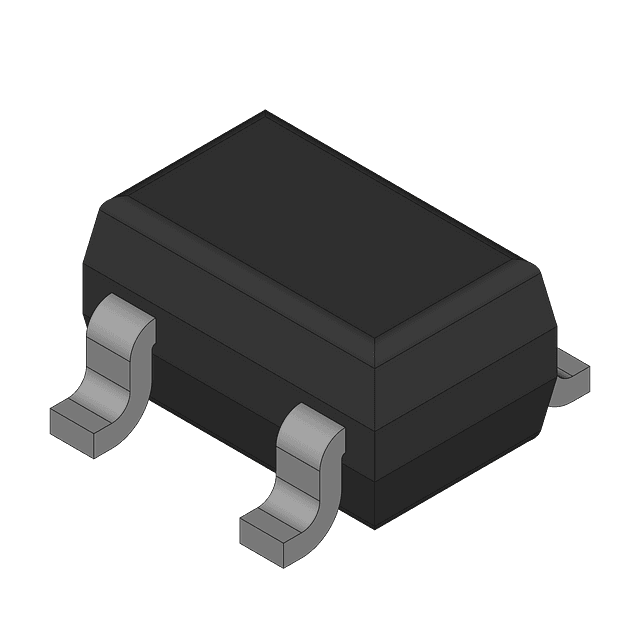

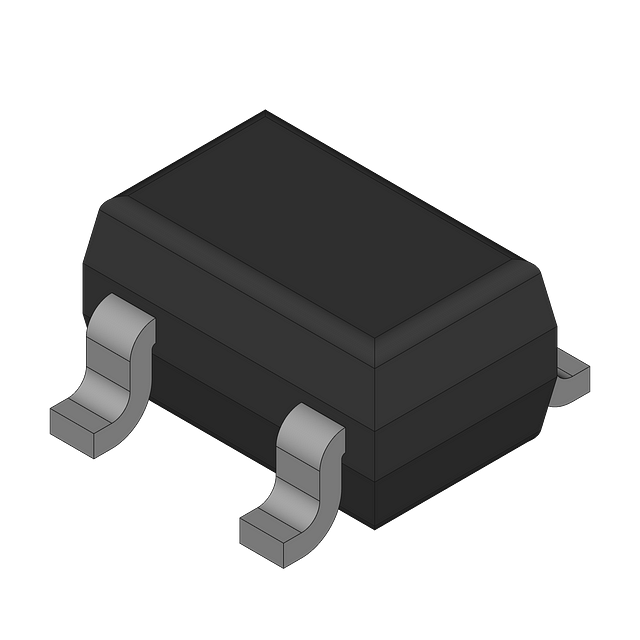

Product Images
