Low voltage supervisory circuit with watchdog timer, featuring active-low reset with an open-drain output. This surface mount IC monitors a single voltage with a reset threshold range of 2.85V to 3V. Operating from 1V to 5.5V, it consumes a maximum supply current of 20uA. The component is RoHS compliant and operates within a temperature range of -40°C to 85°C, supplied in tape and reel packaging.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM8617SAYAKSZ-RL7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
3V
Min Reset Threshold Voltage
2.85V
Max Supply Current
20uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
20uA
Overvoltage Threshold
3V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
1ms
RoHS Compliant
Yes
Threshold Voltage
2.93V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.85V
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM8617SAYAKSZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADM8617SAYAKSZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

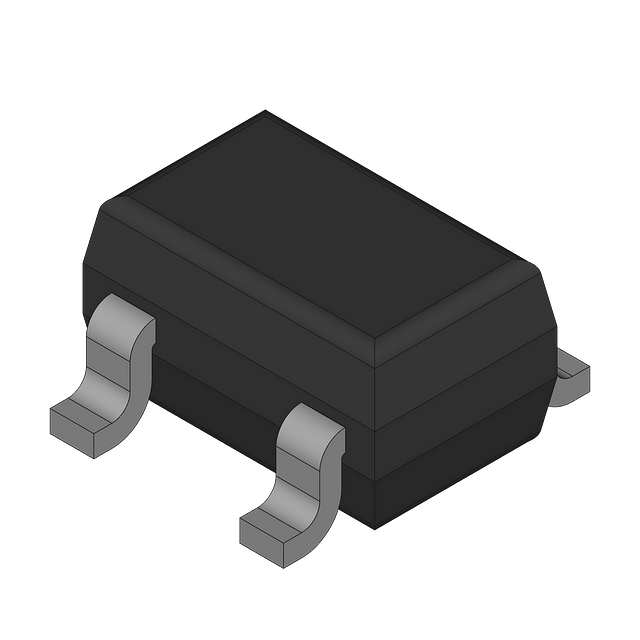

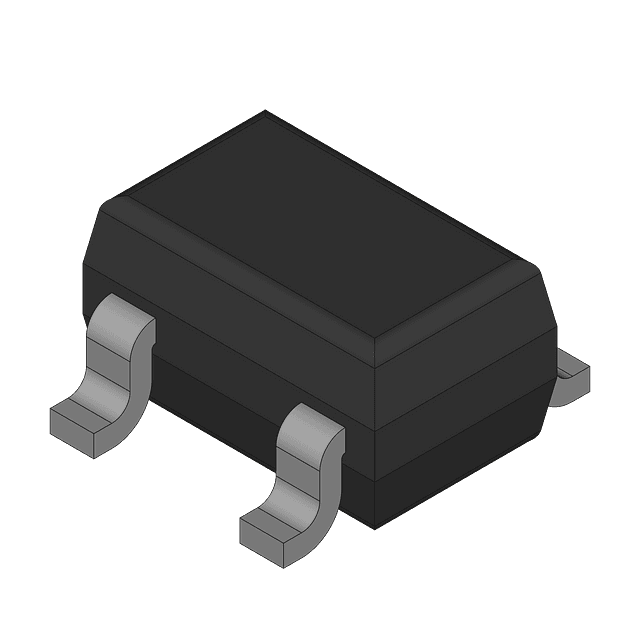

Product Images
