Omnidirectional analog output microphone IC featuring a 62dB signal-to-noise ratio. Operates with a supply voltage range of 1.5V to 3.6V, with a nominal supply current of 180µA and operating current of 250µA. Housed in a compact LGA package measuring 3.35mm x 2.5mm with a height of 0.98mm, this component is RoHS compliant and suitable for consumer applications.
Frequency100Hz
PackageLGA
Voltage Rating3.3V
Current Rating250uA
Quick Jump:
Technical Specifications
Analog Devices ADMP404ACEZ-RL7 technical specifications.
General
Package/Case
LGA
Current Rating
250uA
Depth
2.58mm
Direction
Omnidirectional
Frequency
100Hz
Height
0.98mm
Impedance
200R
Lead Free
Contains Lead
Length
3.35mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.5V
Nominal Supply Current
180uA
Operating Supply Current
250uA
Operating Supply Voltage
3.3V
Output Type
Analog
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ADMP404
Shape
Rectangular, Square
Signal to Noise Ratio (SNR)
62dB
Termination
SMD/SMT
Voltage Rating
3.3V
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADMP404ACEZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADMP404ACEZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

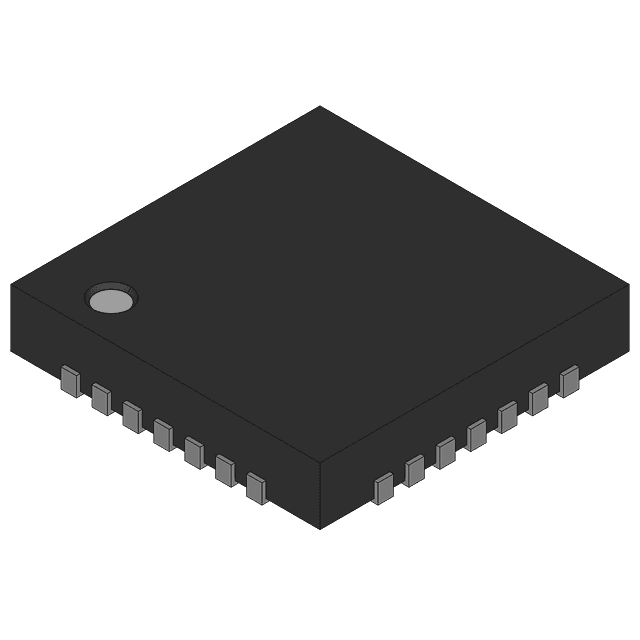

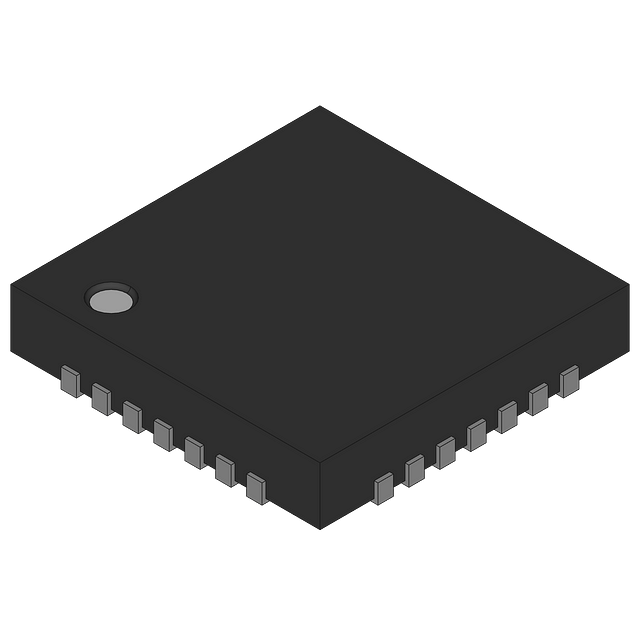

Product Images
