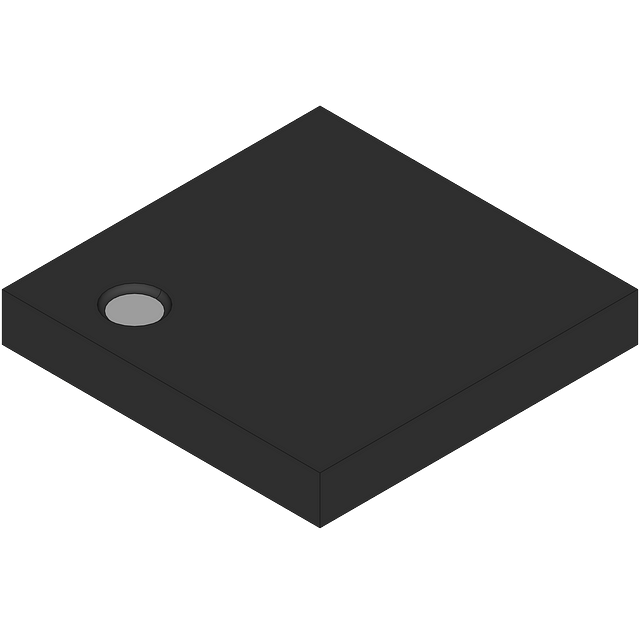

The ADN2525ACPZ-REEL7 is a single-channel interface IC from Analog Devices, operating at a maximum data rate of 10.7Gbps. It is designed to function within a temperature range of -40°C to 85°C. The device is supplied at 3.3V and draws an operating current of 31mA. It is available in a surface-mount package, packaged in tape and reel quantities of 1500. The IC is compliant with RoHS regulations and is not radiation hardened.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADN2525ACPZ-REEL7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADN2525ACPZ-REEL7 technical specifications.
| Data Rate | 10.7Gbps |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Current | 31mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Pulse Width Distortion (PWD) | 2ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
