Dual 1024-position digital resistor with non-volatile memory, featuring a 25kΩ resistance and 8% tolerance. Operates with a dual supply voltage range of 2.25V to 2.75V and a single supply voltage from 2.7V to 5.5V, consuming a low 3.5µA quiescent current. This surface-mount integrated circuit utilizes an SPI interface and offers a 35kHz -3dB bandwidth. The logarithmic taper and two independent resistor elements are housed in a compact LFCSP EP package.
PackageLFCSP EP
Current3.5uA
Resistance25kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADN2850BCPZ25 technical specifications.
General
| -3db Bandwidth | 35kHz |
| Package/Case | LFCSP EP |
| Dual Supply Voltage | 2.5V |
| Height | 0.84mm |
| Interface | SPI |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Dual Supply Voltage | 2.75V |
| Memory Type | Non-Volatile |
| Min Dual Supply Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 1024 |
| Number of Taps | 1024 |
| Operating Supply Current | 3.5uA |
| Operating Supply Voltage | 5V |
| Package Quantity | 490 |
| Packaging | Tray |
| Quiescent Current | 3.5uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 25kR |
| Resistance Tolerance | 8% |
| RoHS Compliant | Yes |
| Supply Current | 3.5uA |
| Taper | Logarithmic |
| Tolerance | 8% |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADN2850BCPZ25 Datasheet
Download the complete datasheet for Analog Devices ADN2850BCPZ25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

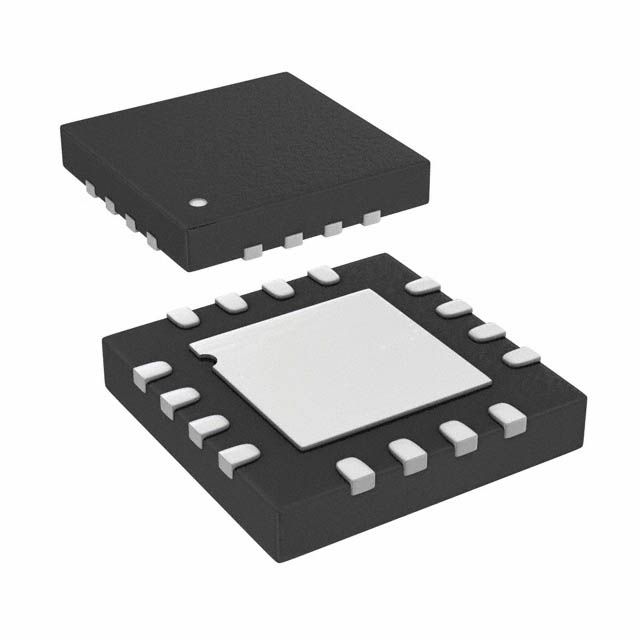

Product Images
