The ADN2890ACPZ-RL7 is a 1-channel, 3.2Gbps telecom IC available in an LFCSP EP package. It operates over a temperature range of -40°C to 85°C and is RoHS compliant. The device has a maximum power dissipation of 130mW and a maximum supply voltage of 3.6V. It also features a high input resistance of 50R and an input offset voltage of 100uV. The IC is suitable for surface mount applications and is available in tape and reel packaging.
PackageLFCSP EP
MountingSurface Mount
Power130mW
Quick Jump:
Technical Specifications
Analog Devices ADN2890ACPZ-RL7 technical specifications.
General
| Package/Case | LFCSP EP |
| Data Rate | 3.2Gbps |
| Input Offset Voltage (Vos) | 100uV |
| Input Resistance | 50R |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 700mV |
| Max Power Dissipation | 130mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 39mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Power Dissipation | 130mW |
| Power Supply Rejection Ratio (PSRR) | 45dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage Gain | 57dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADN2890ACPZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADN2890ACPZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

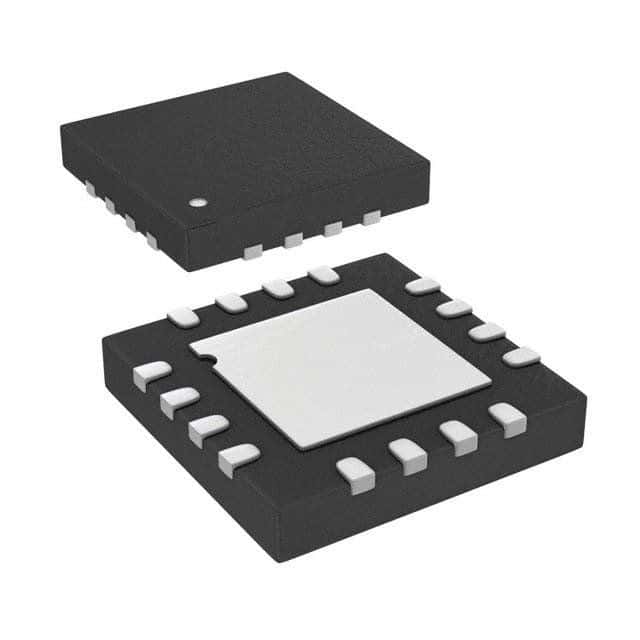

Product Images
