CMOS linear voltage regulator, offering a fixed 1.5V output voltage with a 150mA maximum output current. Features low quiescent current of 30µA, maximum supply current of 40µA, and a wide input voltage range from 2.3V to 5.5V. Achieves 2% accuracy and 60dB PSRR, operating across a temperature range of -40°C to 125°C. Surface mountable, available in 5-lead TSOT or 4-ball WLCSP packages, supplied on tape and reel.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP121-ACBZ15R7 technical specifications.
General
Accuracy
2%
Contact Plating
Copper, Tin, Silver
Lead Free
Contains Lead
Min Current Limit
160mA
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
3.3V
Min Output Voltage
2.2V
Max Supply Current
40uA
Mount
Surface Mount
Nominal Output Voltage
1.5V
Nominal Supply Current
40uA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
40uA
Output Current
150mA
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
30uA
Reach SVHC Compliant
No
Reference Voltage
800mV
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP121-ACBZ15R7 Datasheet
Download the complete datasheet for Analog Devices ADP121-ACBZ15R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

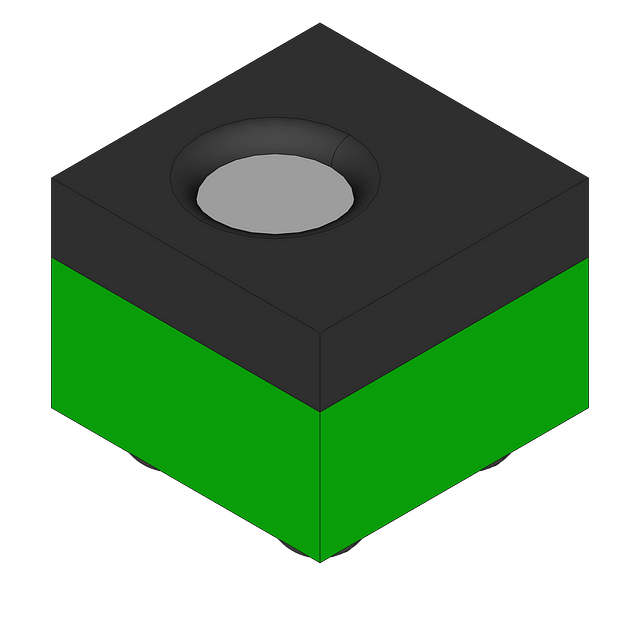

Product Images
