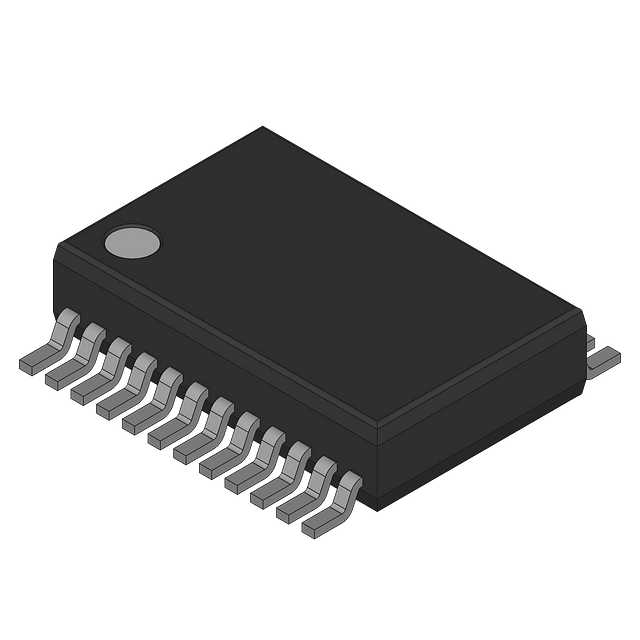

1.2MHz, 20A, single-phase, positive output DC-to-DC controller with synchronous rectification. Features margining and tracking capabilities, operating from a 3.7V to 5.5V input voltage range. Offers adjustable output voltage from 600mV to 4.67V. QSOP package for surface mounting, with tin/matte contact plating. Clock synchronization is supported.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADP1822ARQZ-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADP1822ARQZ-R7 technical specifications.
| Package/Case | QSOP |
| Clock Sync | Yes |
| Contact Plating | Tin, Matte |
| Frequency | 1.2MHz |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20A |
| Max Output Voltage | 4.67V |
| Min Output Voltage | 600mV |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 2mA |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 10uA |
| Operating Supply Voltage | 5V |
| Output Configuration | Positive |
| Output Current | 20A |
| Output Voltage | 20.4V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Termination | SMD/SMT |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADP1822ARQZ-R7 to view detailed technical specifications.
