High-side power switch with a 1.1V to 3.6V input voltage range and 500mA maximum output current. Features reverse current fault protection and a low 700nA operating supply current. Surface mountable in an 0.8mm x 0.8mm x 0.33mm package. Operates from -40°C to 85°C with 80mR on-state resistance.
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP194ACBZ-R7 technical specifications.
General
Fault Protection
Reverse Current
Height
0.33mm
Interface
On/Off
Lead Free
Contains Lead
Length
0.8mm
Max Input Voltage
3.6V
Min Input Voltage
1.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Power Dissipation
7.2uW
Mount
Surface Mount
Number of Outputs
1
On-State Resistance
80mR
Operating Supply Current
700nA
Operating Supply Voltage
3.6V
Output Configuration
High Side
Output Current
500mA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP194ACBZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADP194ACBZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

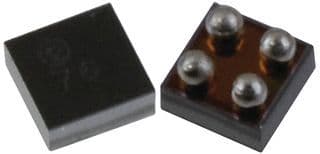

Product Images
