Analog Devices
ADP2118ACPZ-R2
3 A, 1.2 MHz/600 kHz High Efficiency Synchronous Step-Down DC-to-DC Regulator
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2118ACPZ-R2 technical specifications.
General
Contact Plating
Tin, Matte
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5.5V
Min Output Voltage
600mV
Mount
Surface Mount
Nominal Supply Current
150uA
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
5.5V
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2118ACPZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADP2118ACPZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

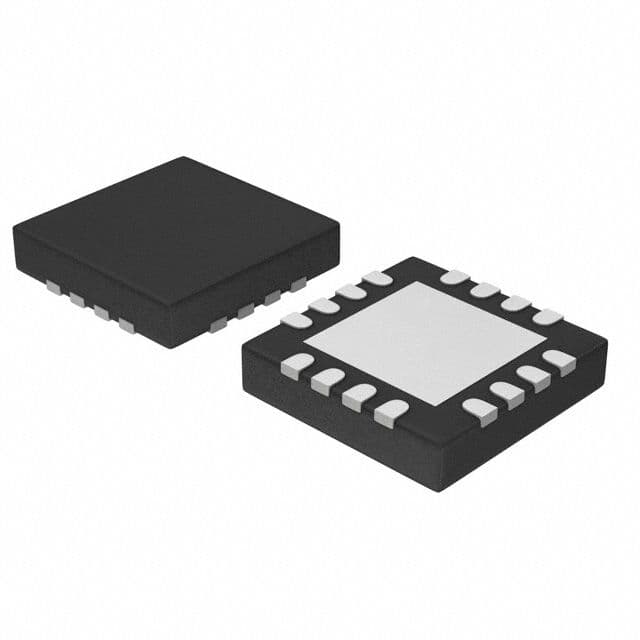

Product Images
