2A synchronous step-down DC-to-DC regulator operating at 1.2MHz. Features a 2.3V to 5.5V input voltage range and adjustable output voltage from 600mV up to 5.5V with 1.5% accuracy. This surface mount component offers a 2A maximum output current and a low 200uA quiescent current. Packaged in an LFCSP EP with dimensions of 3.1mm x 3.1mm x 0.8mm, it operates from -40°C to 125°C.
PackageLFCSP EP
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP2119ACPZ-R7 technical specifications.
General
Accuracy
1.5%
Package/Case
LFCSP EP
Height
0.8mm
Lead Free
Contains Lead
Length
3.1mm
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
5.5V
Min Output Voltage
600mV
Mount
Surface Mount
Nominal Supply Current
200uA
Number of Outputs
1
Operating Supply Current
200uA
Output Configuration
Positive
Output Current
2A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
200uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
600mV
RoHS Compliant
Yes
Series
ADP2119
Synchronous Rectifier
Yes
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2119ACPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADP2119ACPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

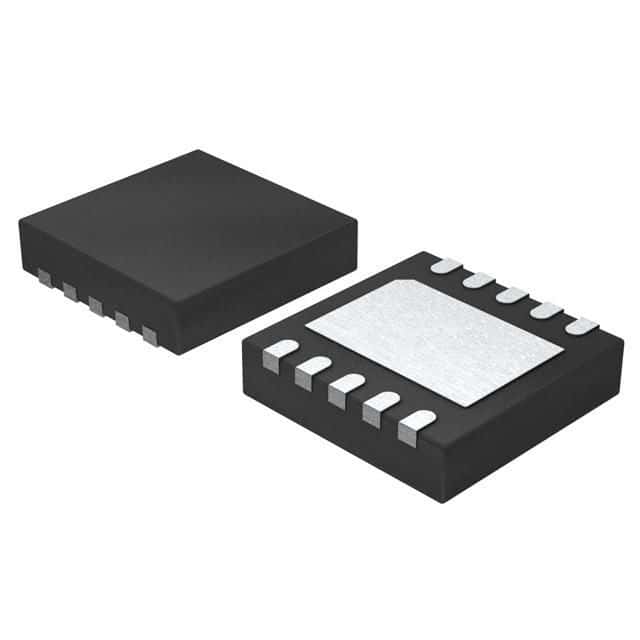

Product Images
