Dual, 200 mA low noise, high PSRR voltage regulator featuring 2.6V fixed positive output voltage. This integrated circuit offers 2% accuracy, a maximum input voltage of 5.5V, and operates from 2.3V to 5.5V. With a high Power Supply Rejection Ratio (PSRR) of 76dB, it provides 200mA maximum output current per channel. The component is housed in a BGA package with copper, tin, and silver contact plating, and operates across a temperature range of -40°C to 125°C. Packaged in tape and reel, this RoHS compliant device contains lead.
PackageBGA
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP220ACBZ-2623R7 technical specifications.
General
Accuracy
2%
Package/Case
BGA
Contact Plating
Copper, Tin, Silver
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Min Output Voltage
2.6V
Max Supply Current
70uA
Nominal Supply Current
220uA
Number of Outputs
2
Number of Regulators
2
Operating Supply Current
220uA
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
76dB
Quiescent Current
120uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP220ACBZ-2623R7 Datasheet
Download the complete datasheet for Analog Devices ADP220ACBZ-2623R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

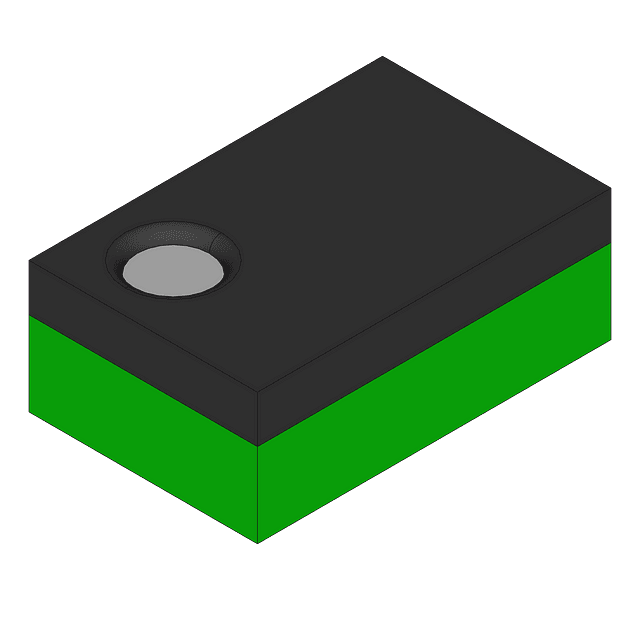

Product Images
