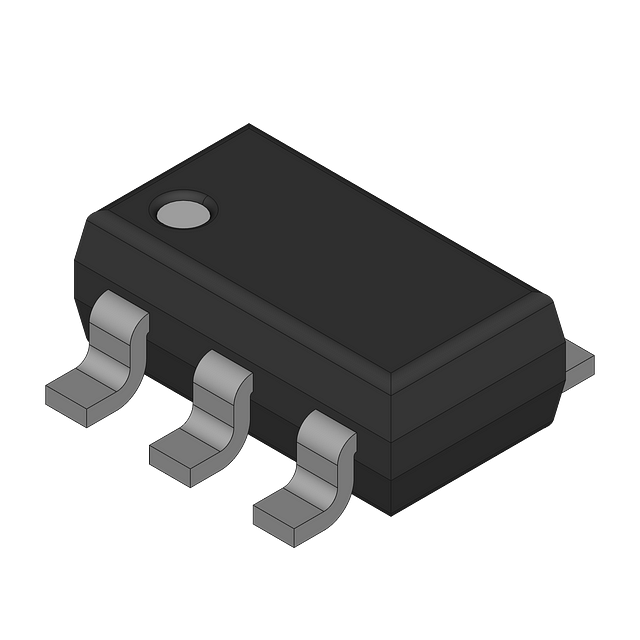

Dual, 300 mA fixed output, low noise, high PSRR voltage regulator offering 3.3V and 2.8V outputs. Features 1% accuracy, 170mV dropout voltage, and a maximum input voltage of 5.5V. Designed for surface mount applications with gold contact plating and a maximum operating temperature of 125°C. This RoHS compliant component provides 70dB PSRR and a maximum supply current of 250µA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADP222ACPZ-3328-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADP222ACPZ-3328-R7 technical specifications.
| Accuracy | 1% |
| Contact Plating | Gold |
| Current - Output 1 | 300mA |
| Current - Output 2 | 300mA |
| Dropout Voltage | 170mV |
| Lead Free | Contains Lead |
| Min Current Limit | 340mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Max Supply Current | 250uA |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Output Current | 300mA |
| Output Type | Fixed |
| Output Voltage | 2.8V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 2.8V |
| RoHS | Compliant |
