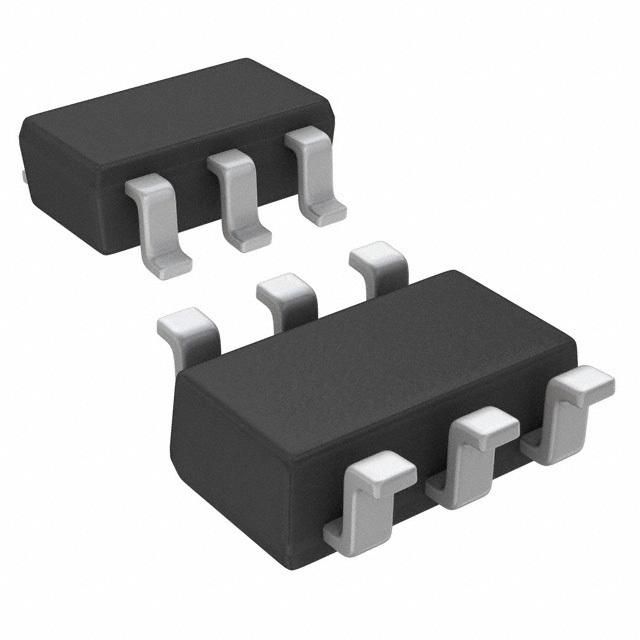

1.2A, 20V non-synchronous step-down switching regulator with adjustable output voltage from 800mV to 17V. Features a 1.4MHz switching frequency and up to 91% efficiency. Operates from a 3V to 20V input voltage range with a 800µA operating supply current. Packaged in a compact TSOT with tin-matte plating, this surface-mount component offers a 1.2A maximum output current.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADP2301AUJZ-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADP2301AUJZ-R7 technical specifications.
| Package/Case | TSOT |
| Contact Plating | Tin, Matte |
| Efficiency | 91% |
| Height | 0.9mm |
| Lead Free | Contains Lead |
| Length | 2.9mm |
| Max Input Voltage | 20V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Max Output Voltage | 17V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 800uA |
| Output Configuration | Positive |
| Output Current | 1.2A |
| Output Type | Adjustable |
| Output Voltage | 17V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Width | 1.6mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADP2301AUJZ-R7 to view detailed technical specifications.
