High-efficiency, low quiescent current buck regulator with adjustable output voltage up to 14V and 800mA maximum output current. Features a wide input voltage range of 3.2V to 15V and operates at selectable frequencies of 1.2 MHz or 600 kHz. This surface mount component offers up to 90% efficiency and a nominal supply current of 700uA, with a compact 3.1mm x 3.1mm x 0.75mm package. Includes synchronous rectification and operates across a temperature range of -40°C to 125°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2370ACPZ-R2 technical specifications.
General
Contact Plating
Tin, Matte
Efficiency
90%
Height
0.75mm
Lead Free
Contains Lead
Length
3.1mm
Max Input Voltage
15V
Min Input Voltage
3.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
14V
Min Output Voltage
800mV
Mount
Surface Mount
Nominal Supply Current
700uA
Number of Outputs
1
Operating Supply Current
700uA
Operating Supply Voltage
15V
Output Current
800mA
Output Type
Adjustable
Output Voltage
14V
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2370ACPZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADP2370ACPZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

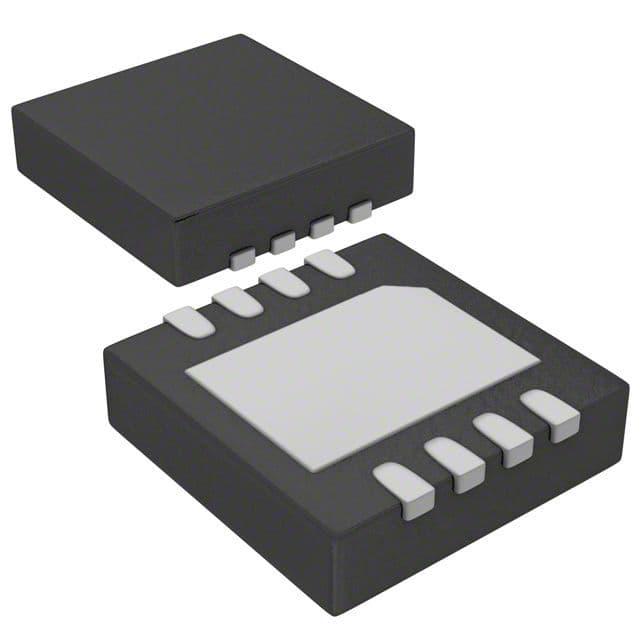

Product Images
