High voltage DC/DC buck regulator with adjustable output voltage up to 14V and 800mA maximum output current. Features a 1.2 MHz/600 kHz switching frequency, 92% efficiency, and a low 700µA quiescent current. Operates from a 3.2V to 15V input voltage range and supports a wide temperature range of -40°C to 125°C. This surface mount component utilizes tin, matte contact plating and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2370ACPZ-R7 technical specifications.
General
Contact Plating
Tin, Matte
Efficiency
92%
Lead Free
Contains Lead
Max Input Voltage
15V
Min Input Voltage
3.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
14V
Min Output Voltage
800mV
Mount
Surface Mount
Nominal Supply Current
700uA
Number of Outputs
1
Operating Supply Current
700uA
Operating Supply Voltage
15V
Output Current
800mA
Output Type
Adjustable
Output Voltage
14V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2370ACPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADP2370ACPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

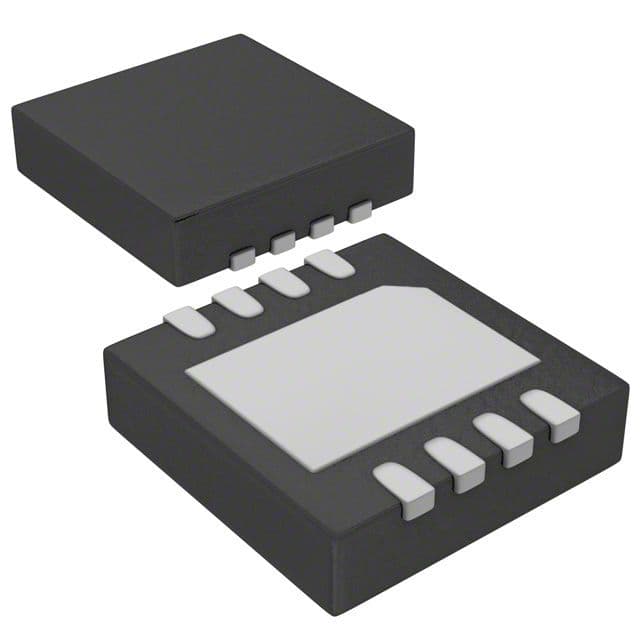

Product Images
