Triple, 200 mA, low noise, high PSRR voltage regulator featuring three positive, adjustable output regulators. Each output provides up to 200 mA with 1% accuracy and a dropout voltage of 110 mV. Maximum input voltage is 5.5V, with a minimum of 1.8V. Operating supply current is 250 µA, and the device offers a Power Supply Rejection Ratio (PSRR) of 60 dB. Housed in an LFCSP EP package with dimensions of 3.1mm x 3.1mm x 0.75mm, this RoHS compliant component operates from -40°C to 125°C.
PackageLFCSP EP
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP323ACPZ-R7 technical specifications.
General
| Accuracy | 1% |
| Package/Case | LFCSP EP |
| Current - Output 1 | 200mA |
| Current - Output 2 | 200mA |
| Dropout Voltage | 110mV |
| Height | 0.75mm |
| Lead Free | Contains Lead |
| Length | 3.1mm |
| Min Current Limit | 250mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.8V |
| Max Supply Current | 140uA |
| Nominal Supply Current | 250uA |
| Number of Outputs | 3 |
| Number of Regulators | 3 |
| Operating Supply Current | 250uA |
| Output Configuration | Positive |
| Output Current | 200mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Output Voltage Accuracy | 1% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 160uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 5V |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADP323ACPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADP323ACPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

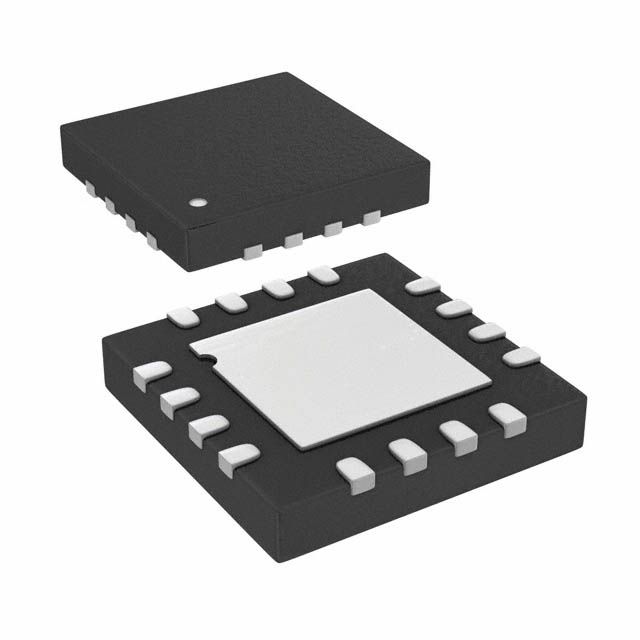

Product Images
