Dual MOSFET driver IC, featuring independent channels and 4A maximum output current. Operates with a supply voltage range of 4.5V to 18V, offering a 35ns propagation delay and 10ns fall time. This surface mount component is housed in an MSOP package, suitable for a wide operating temperature range of -40°C to 85°C.
PackageMSOP
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP3624ARHZ technical specifications.
General
| Package/Case | MSOP |
| Channel Type | Independent |
| Fall Time | 10ns |
| Height | 0.94mm |
| Lead Free | Contains Lead |
| Length | 3.1mm |
| Max Input Voltage | 18V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Supply Current | 3mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Operating Supply Current | 1.2mA |
| Output Current | 4A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 35ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.2mA |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADP3624ARHZ Datasheet
Download the complete datasheet for Analog Devices ADP3624ARHZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

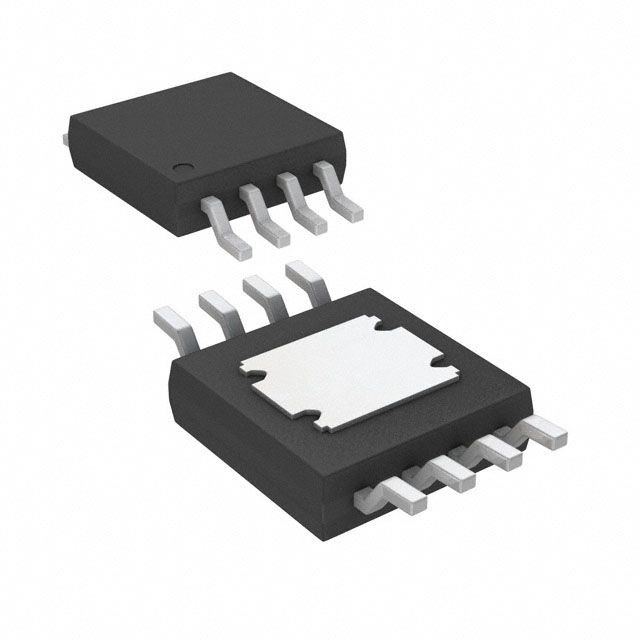

Product Images
