Dual 4A MOSFET driver for high-speed switching applications. Features independent channels with 4A output current capability and 35ns propagation delay. Operates from a 4.5V to 18V supply voltage range, with a maximum input voltage of 18V. Packaged in a compact MSOP for surface mounting, this RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
PackageMSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP3654ARHZ-RL technical specifications.
General
Package/Case
MSOP
Channel Type
Independent
Fall Time
25ns
Height
1.1mm
Lead Free
Contains Lead
Max Input Voltage
18V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Supply Current
3mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Output Current
4A
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
35ns
RoHS Compliant
Yes
Supply Current
3mA
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP3654ARHZ-RL Datasheet
Download the complete datasheet for Analog Devices ADP3654ARHZ-RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

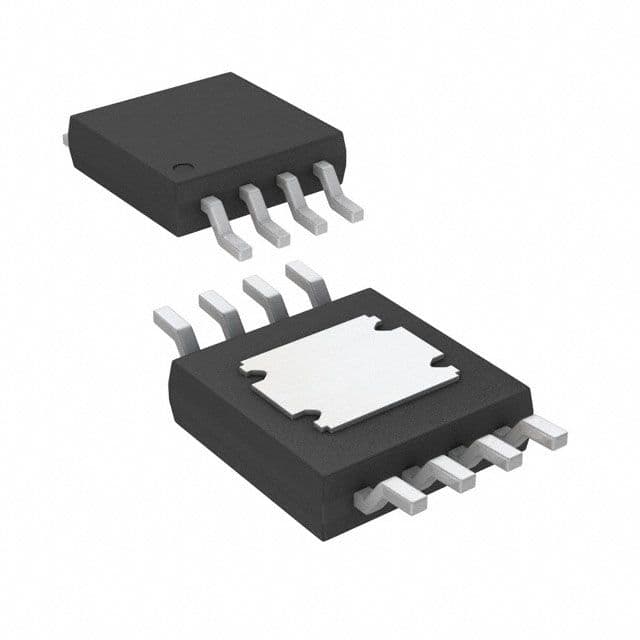

Product Images
