The ADP5022ACBZ-4-R7 is a 3-channel DC/DC controller from Analog Devices. It operates at a maximum input voltage of 5.5V and a minimum input voltage of 2.4V. The device has a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It is RoHS compliant and has a nominal supply current of 110μA. The ADP5022ACBZ-4-R7 is available in a BGA package and is suitable for use in power management applications.
PackageBGA
Quick Jump:
Technical Specifications
Analog Devices ADP5022ACBZ-4-R7 technical specifications.
General
| Package/Case | BGA |
| Contact Plating | Copper, Tin, Silver |
| Current - Output 1 | 600mA |
| Current - Output 2 | 600mA |
| Current - Output 3 | 150mA |
| Interface | GPIO |
| Lead Free | Contains Lead |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Nominal Supply Current | 110uA |
| Number of Outputs | 3 |
| Operating Supply Current | 110uA |
| Operating Supply Voltage | 5.5V |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 1.8V |
| Voltage - Output 3 | 3.3V |
| Weight | 0.006243oz |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADP5022ACBZ-4-R7 Datasheet
Download the complete datasheet for Analog Devices ADP5022ACBZ-4-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

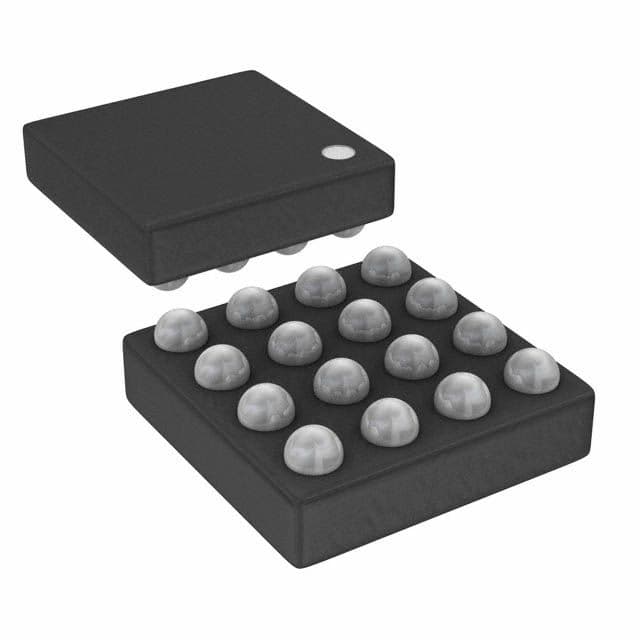

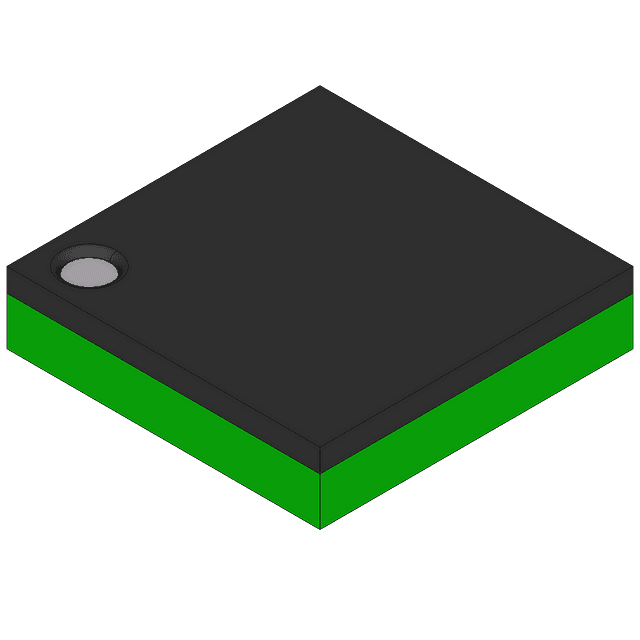

Product Images
