Micro Power Management IC featuring a 1.2A buck regulator and two 300mA LDOs. Offers fixed output voltages of 3.8V, 5.2V, and 5.2V with an accuracy of 3%. Operates from a 2.3V to 5.5V input, delivering up to 1.2A output current. Housed in a 4mm x 4.1mm x 0.73mm LFCSP EP package with tin-matte contact plating. Features GPIO interface and a low quiescent current of 10µA.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices ADP5040ACPZ-1-R7 technical specifications.
General
| Accuracy | 3% |
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Current - Output 1 | 1.2A |
| Current - Output 2 | 300mA |
| Current - Output 3 | 300mA |
| Height | 0.73mm |
| Interface | GPIO |
| Lead Free | Contains Lead |
| Length | 4mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2kA |
| Max Output Voltage | 4.75V |
| Min Output Voltage | 800mV |
| Number of Outputs | 3 |
| Operating Supply Voltage | 5.5V |
| Output Current | 1.2A |
| Output Type | Fixed |
| Output Voltage | 3.8V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Quiescent Current | 10uA |
| Reach SVHC Compliant | No |
| Reference Voltage | 515mV |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 3.8V |
| Voltage - Output 2 | 5.2V |
| Voltage - Output 3 | 5.2V |
| Width | 4.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADP5040ACPZ-1-R7 Datasheet
Download the complete datasheet for Analog Devices ADP5040ACPZ-1-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

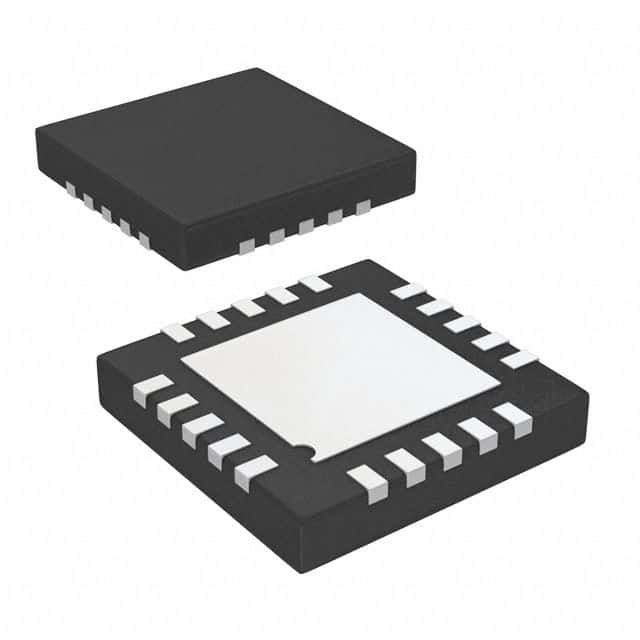

Product Images
