This Micro Power Management IC features a 1.2A buck converter and two 300mA LDOs, offering three independent outputs. It supports a wide input voltage range from 2.3V to 5.5V, with adjustable output voltages from 800mV to 4.75V. Integrated supervisory and watchdog functions, along with a manual reset, enhance system reliability. The component is housed in a compact 4mm x 4mm LFCSP EP package with a height of 0.73mm, operating across a temperature range of -40°C to 125°C.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices ADP5041ACPZ-1-R7 technical specifications.
General
Package/Case
LFCSP EP
Current - Output 1
1.2A
Current - Output 2
300mA
Current - Output 3
300mA
Height
0.73mm
Interface
GPIO
Lead Free
Contains Lead
Length
4mm
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.2kA
Max Output Voltage
4.75V
Min Output Voltage
800mV
Number of Outputs
3
Operating Supply Voltage
5.5V
Package Quantity
1500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage - Output 1
3.8V
Voltage - Output 2
5.2V
Voltage - Output 3
5.2V
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP5041ACPZ-1-R7 Datasheet
Download the complete datasheet for Analog Devices ADP5041ACPZ-1-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

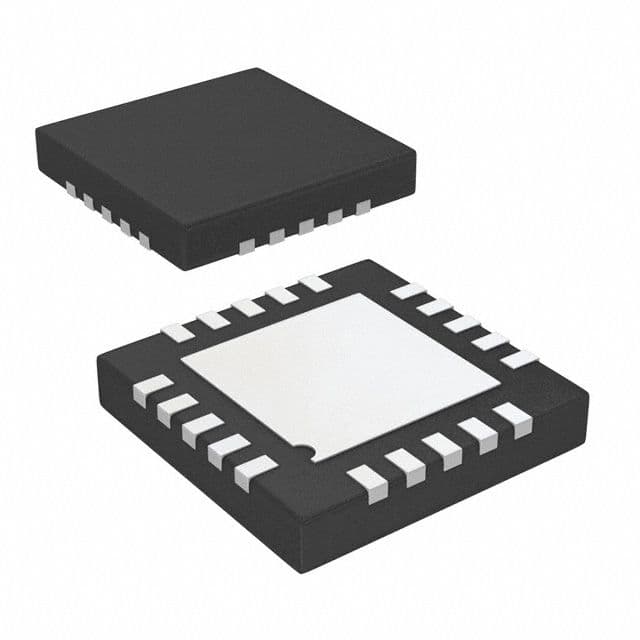

Product Images
