The ADP5065ACBZ-1-R7 is a lithium-ion battery monitor IC with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It operates on a supply voltage between 4V and 5.5V and has a maximum charge current of 1.25A. The device is available in a surface mount package and is compliant with RoHS regulations. It is not Reach SVHC compliant. The IC is available in a tape and reel packaging with 3000 units per package.
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP5065ACBZ-1-R7 technical specifications.
General
| Battery Chemistry | LITHIUM-ION |
| Battery Pack Voltage | 4.2V |
| Interface | I2C, USB |
| Lead Free | Contains Lead |
| Max Charge Current | 1.25A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADP5065ACBZ-1-R7 Datasheet
Download the complete datasheet for Analog Devices ADP5065ACBZ-1-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

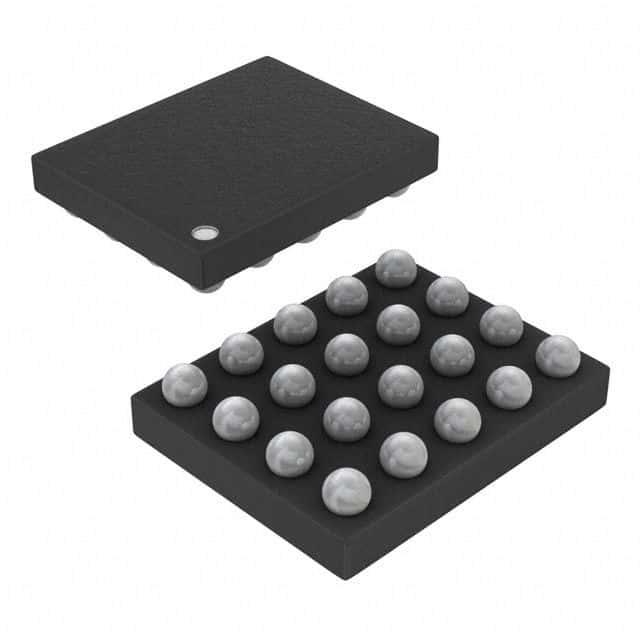

Product Images
