Precision Series Sub-Band Gap Voltage Reference, a single-channel integrated circuit, offers a stable 1V reference voltage with a 0.35% tolerance. This power management IC operates from a 2V to 20V input, drawing a quiescent current of 150µA, and can source up to 4mA. Packaged in a compact TSOT with dimensions of 2.9mm x 1.6mm x 0.87mm, it functions across an industrial temperature range of -40°C to 125°C. Supplied on tape and reel, this RoHS compliant component is ideal for applications requiring reliable voltage regulation.
PackageTSOT
Quick Jump:
Technical Specifications
Analog Devices ADR130BUJZ-R2 technical specifications.
General
Package/Case
TSOT
Height
0.87mm
Length
2.9mm
Max Input Voltage
20V
Min Input Voltage
2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4mA
Max Output Voltage
1.004V
Min Output Voltage
1V
Number of Channels
1
Operating Supply Current
150uA
Output Current
4mA
Output Voltage
500mV
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
150uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series, Programmable
Reference Voltage
1V
RoHS Compliant
Yes
Tolerance
0.35%
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADR130BUJZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADR130BUJZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

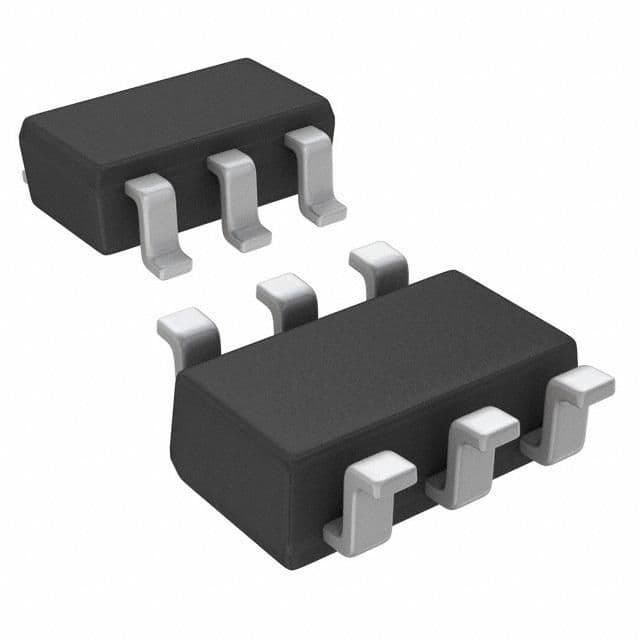

Product Images
