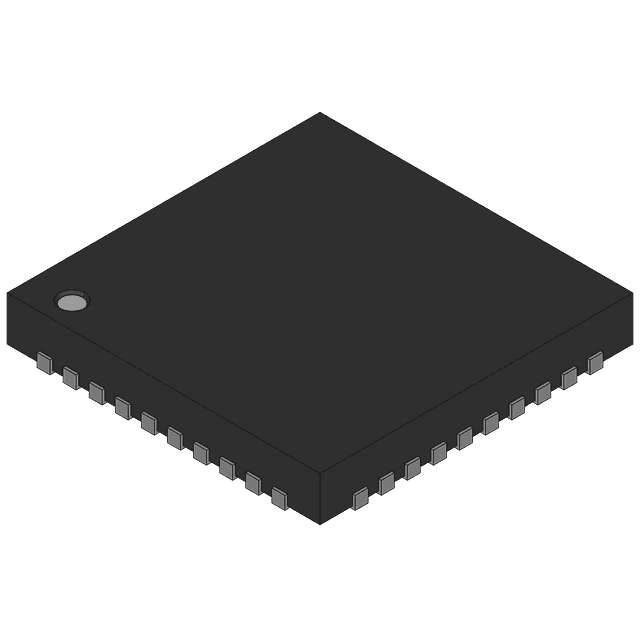

1200 MHz TO 3600 MHz Rx Mixer with Integrated Fractional-N PLL and VCO
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADRF6604ACPZ-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Frequency | 2.9GHz |
| Gain | 6.3dB |
| Lead Free | Contains Lead |
| Max Frequency | 2.9GHz |
| Min Frequency | 2.5GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Noise Figure | 15.5dB |
| Operating Supply Current | 276mA |
| Operating Supply Voltage | 5V |
| P1dB | 14.4dBm |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 276mA |
| RoHS | Compliant |
