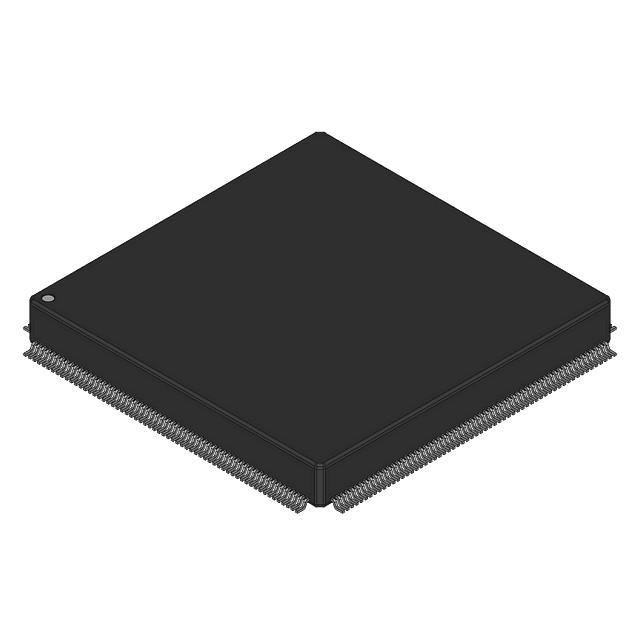

The ADSP-21061LKSZ-176 is a 32-bit SHARC digital signal processor with a 44MHz frequency and a serial SSP interface. It is packaged in a QFP-240 lead-free package, but contains lead. The device operates over a temperature range of 0°C to 85°C with a supply voltage of 3.15V to 3.45V. It has 128KB of RAM and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADSP-21061LKSZ-176 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADSP-21061LKSZ-176 technical specifications.
| Package/Case | QFP |
| Contact Plating | Tin, Matte |
| Core Architecture | SHARC |
| Data Bus Width | 32b |
| Frequency | 44MHz |
| Interface | Serial, SSP |
| Lead Free | Contains Lead |
| Max Frequency | 44MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Timers/Counters | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tray |
| RAM Size | 128KB |
| RoHS Compliant | Yes |
| Series | SHARC® |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADSP-21061LKSZ-176 to view detailed technical specifications.
