Analog Devices
ADSP-21368BBPZ-2A
High-Performance 32-bit Floating-Point SHARC Processor for Professional Audio Applications
Frequency400GHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADSP-21368BBPZ-2A technical specifications.
General
Package/Case
BGA
Contact Plating
Copper, Tin, Silver
Core Architecture
SHARC
Data Bus Width
32b
Frequency
400GHz
Interface
DAI, DPI
Lead Free
Contains Lead
Max Frequency
400MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.47V
Memory Size
768KB
Min Supply Voltage
1.14V
Mount
Surface Mount
Number of I/Os
16
Number of Timers/Counters
3
Number of UART Channels
2
Operating Supply Voltage
1.35V
Package Quantity
1
Packaging
Tray
RAM Size
256KB
RoHS Compliant
Yes
Series
SHARC®
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADSP-21368BBPZ-2A Datasheet
Download the complete datasheet for Analog Devices ADSP-21368BBPZ-2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

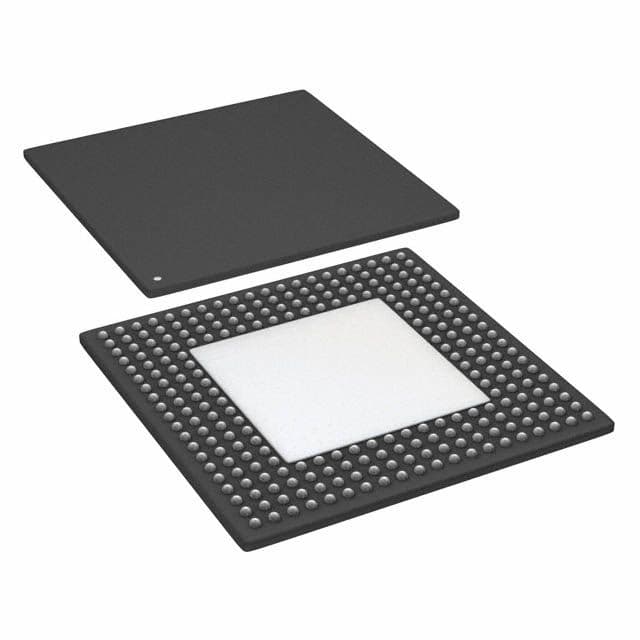

Product Images
