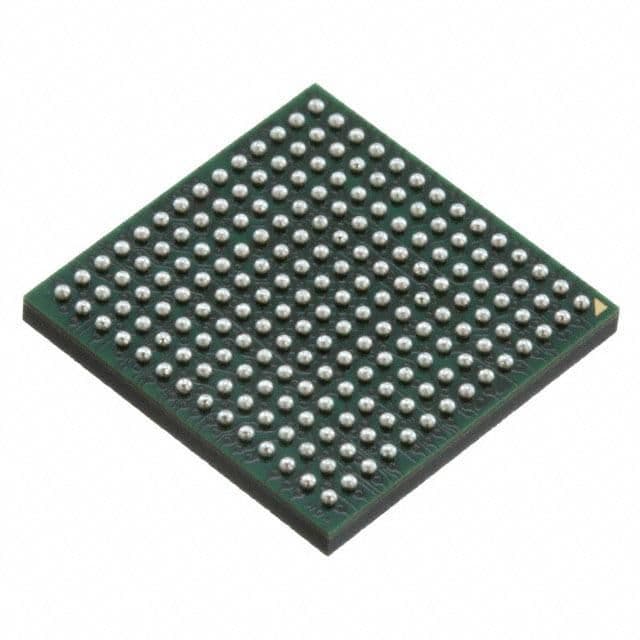

High-performance fourth-generation DSP microprocessor featuring a 32-bit SHARC core architecture operating at 266MHz, with a maximum frequency of 300MHz. This BGA-packaged integrated circuit offers 640KB of RAM and 512KB of internal memory, supporting interfaces including I2C, SPI, UART, DAI, DPI, USART, and EBI/EMI. It operates from a 1.25V to 1.35V supply voltage, with a typical operating voltage of 1.3V, and includes 16 general-purpose I/Os and two timers/counters. The component is RoHS compliant and designed for operation within a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADSP-21479KBCZ-3A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADSP-21479KBCZ-3A technical specifications.
| Package/Case | BGA |
| Contact Plating | Copper, Tin, Silver |
| Core Architecture | SHARC |
| Data Bus Width | 32b |
| Frequency | 266MHz |
| Interface | I2C, SPI, UART, DAI, DPI, USART, EBI/EMI |
| Lead Free | Contains Lead |
| Max Frequency | 300MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 512KB |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.35V |
| Min Supply Voltage | 1.25V |
| Number of GPIO | 16 |
| Number of I/Os | 16 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 1.3V |
| Package Quantity | 1 |
| Packaging | Tray |
| RAM Size | 640KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SHARC® |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADSP-21479KBCZ-3A to view detailed technical specifications.
