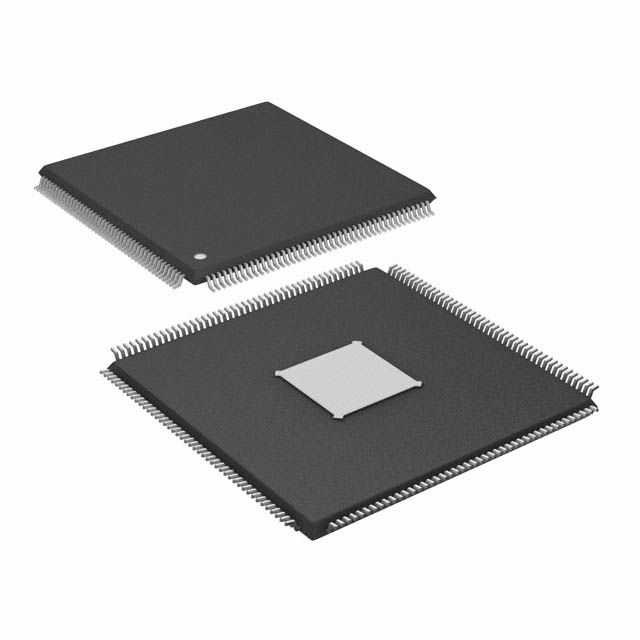

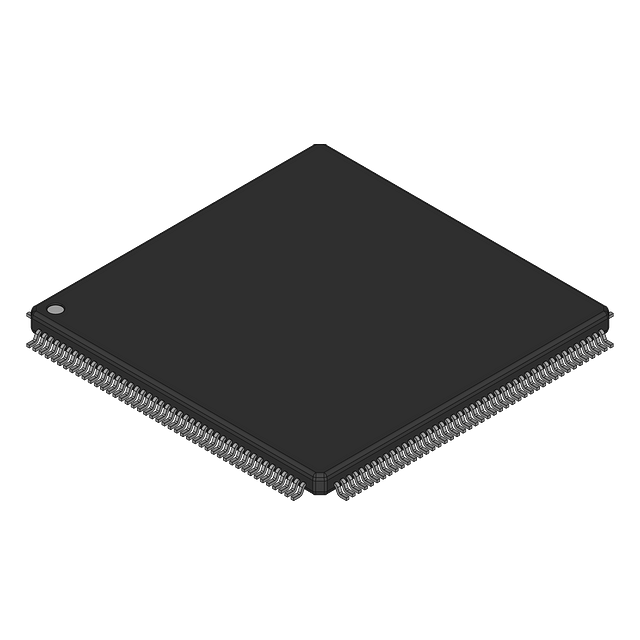

The ADSP-21488BSWZ-3B is a 32-bit SHARC microprocessor operating at a frequency of 400MHz with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It features a 384KB RAM size and supports various interfaces including SPI, Serial, UART, 2-Wire, DAI, DPI, I2C, USART, and EBI/EMI. The device is packaged in a LQFP package and is compliant with RoHS standards. It is designed for surface mount and has a maximum supply voltage of 3.47V and a minimum supply voltage of 3.13V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADSP-21488BSWZ-3B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADSP-21488BSWZ-3B technical specifications.
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Core Architecture | SHARC |
| Data Bus Width | 32b |
| Frequency | 400MHz |
| Interface | SPI, Serial, UART, 2-Wire, DAI, DPI, I2C, USART, EBI/EMI |
| Lead Free | Contains Lead |
| Max Frequency | 350MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.47V |
| Min Supply Voltage | 3.13V |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tray |
| RAM Size | 384KB |
| RoHS Compliant | Yes |
| Series | SHARC® |
| RoHS | Compliant |
