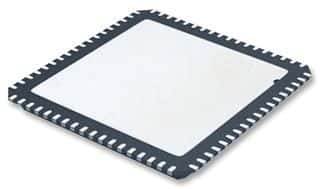

400MHz 32-bit Digital Signal Processor (DSP) featuring a Blackfin core architecture with 4MB of executable flash memory. This surface mount IC offers a 64KB RAM size and supports I2C, SPI, CAN, IrDA, UART, USART, and EBI/EMI interfaces. Operating within a 1.14V to 1.47V supply voltage range, it includes 12 ADC channels and 35 I/Os, with a maximum operating temperature of 85°C. The LFCSP EP package with tin, matte contact plating ensures reliable performance for industrial and general-purpose applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADSP-BF504BCPZ-4F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADSP-BF504BCPZ-4F technical specifications.
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Core Architecture | Blackfin |
| Data Bus Width | 32b |
| Density | 4MB |
| Frequency | 400MHz |
| Height | 0.74mm |
| Interface | I2C, SPI, CAN, IrDA, UART, USART, EBI/EMI |
| Lead Free | Contains Lead |
| Length | 12.1mm |
| Max Frequency | 400MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 4096KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.47V |
| Min Supply Voltage | 1.14V |
| Mount | Surface Mount |
| Number of ADC Channels | 12 |
| Number of Bits | 32 |
| Number of I/Os | 35 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 9 |
| Number of UART Channels | 2 |
| Package Quantity | 168 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 64KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Blackfin® |
| Width | 12.1mm |
| RoHS | Compliant |
