Analog Devices
ADSP-BF522KBCZ-4
Low Power Blackfin Processor with Advanced Peripherals and Low Standby Power
Frequency400MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADSP-BF522KBCZ-4 technical specifications.
General
Package/Case
BGA
Contact Plating
Copper, Tin, Silver
Core Architecture
Blackfin
Data Bus Width
16b
Frequency
400MHz
Interface
I2C, SPI, UART
Lead Free
Contains Lead
Max Frequency
400MHz
Max Operating Temperature
85°C
Memory Size
132KB
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of I/Os
48
Number of Timers/Counters
9
Number of UART Channels
2
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tray
RAM Size
64KB
RoHS Compliant
Yes
Series
Blackfin®
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADSP-BF522KBCZ-4 Datasheet
Download the complete datasheet for Analog Devices ADSP-BF522KBCZ-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

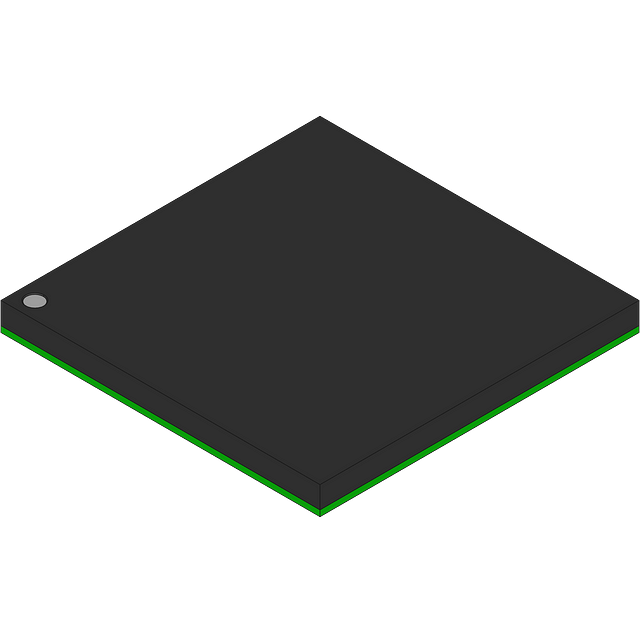

Product Images
