400MHz Blackfin Digital Signal Processor (DSP) featuring a 16-bit data bus and 132KB of FLASH memory. This surface mount BGA package offers embedded stereo audio CODEC, 48 I/Os, and multiple interfaces including SPI, I2C, USB, and UART. Operates from 1.8V to 3.6V with a 32KB RAM size and 9 timers/counters. Designed for low power consumption with a maximum operating temperature of 85°C.
Frequency400MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADSP-BF524KBCZ-4C2 technical specifications.
General
Package/Case
BGA
Contact Plating
Copper, Tin, Silver
Core Architecture
Blackfin
Data Bus Width
16b
Frequency
400MHz
Height
1.4mm
Interface
SPI, I2C, USB, UART
Lead Free
Contains Lead
Max Frequency
400MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
132KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
48
Number of SPI Channels
1
Number of Timers/Counters
9
Number of UART Channels
2
Number of USB Channels
1
Operating Supply Voltage
3.3V
Package Quantity
189
Packaging
Tray
RAM Size
32KB
RoHS Compliant
Yes
Series
Blackfin®
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADSP-BF524KBCZ-4C2 Datasheet
Download the complete datasheet for Analog Devices ADSP-BF524KBCZ-4C2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

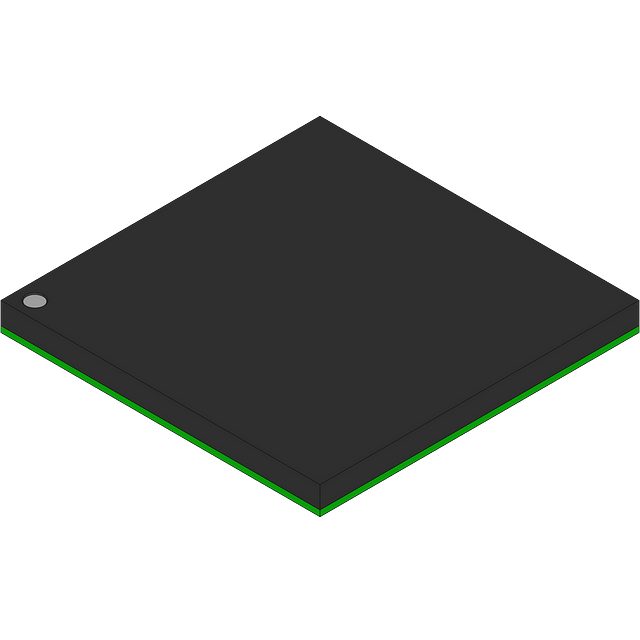

Product Images
