600MHz Blackfin Digital Signal Processor (DSP) featuring a 16-bit data bus and 132KB memory. This surface mount BGA package offers 48 I/Os, including I2C, SPI, USB, Ethernet, and UART interfaces. Operates from 1.7V to 3.6V with a typical 3.3V supply, and supports a temperature range of -40°C to 85°C. Includes 32KB RAM and 9 timers/counters.
Frequency600MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADSP-BF527KBCZ-6A technical specifications.
General
Package/Case
BGA
Core Architecture
Blackfin
Data Bus Width
16b
Frequency
600MHz
Height
1.36mm
Interface
I2C, SPI, USB, Ethernet, UART
Lead Free
Contains Lead
Length
17.1mm
Max Frequency
600MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
132KB
Memory Type
OTP,
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Ethernet Channels
1
Number of I/Os
48
Number of SPI Channels
1
Number of Timers/Counters
9
Number of UART Channels
2
Number of USB Channels
1
Operating Supply Voltage
3.3V
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
Blackfin®
Width
17.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADSP-BF527KBCZ-6A Datasheet
Download the complete datasheet for Analog Devices ADSP-BF527KBCZ-6A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

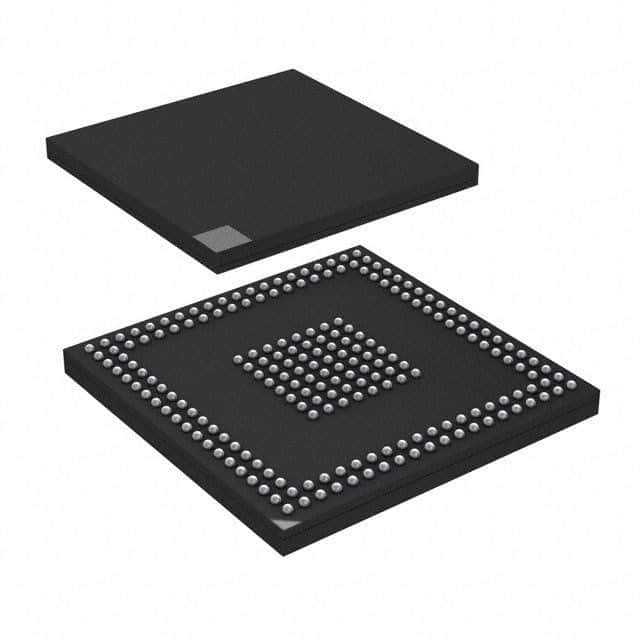

Product Images
