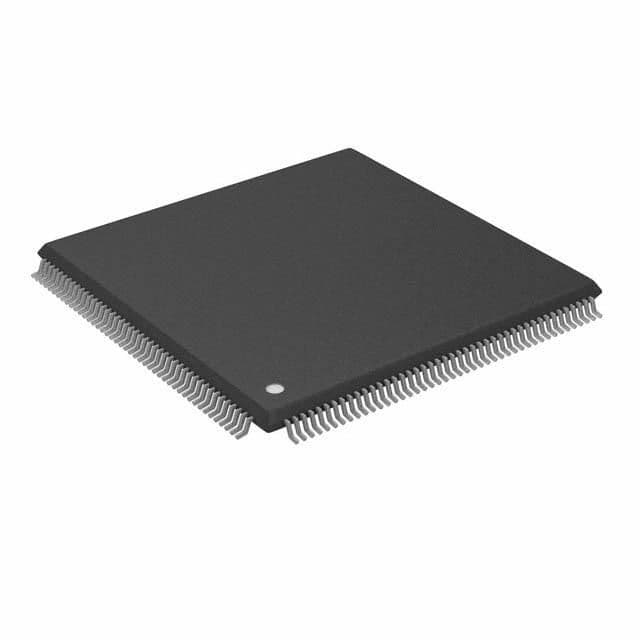

400 MHz Digital Signal Processor (DSP) featuring a Blackfin core architecture. This surface mount IC operates at a 400MHz frequency with a 16-bit data bus width. It includes 52KB ROM and 16KB RAM, supporting SPI, SSP, and UART interfaces. The processor is housed in an LQFP package, with a voltage range of 800mV to 3.6V and an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADSP-BF531SBSTZ400 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADSP-BF531SBSTZ400 technical specifications.
| Package/Case | LQFP |
| Core Architecture | Blackfin |
| Data Bus Width | 16b |
| Frequency | 400MHz |
| Height | 1.4mm |
| Interface | SPI, SSP, UART |
| Lead Free | Contains Lead |
| Length | 24mm |
| Max Frequency | 400MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 52KB |
| Memory Type | ROM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 800mV |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 1 |
| Package Quantity | 40 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 16KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Blackfin® |
| Width | 24mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADSP-BF531SBSTZ400 to view detailed technical specifications.
