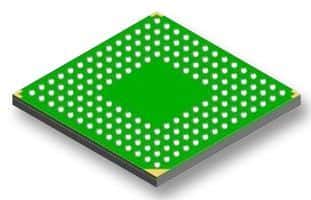

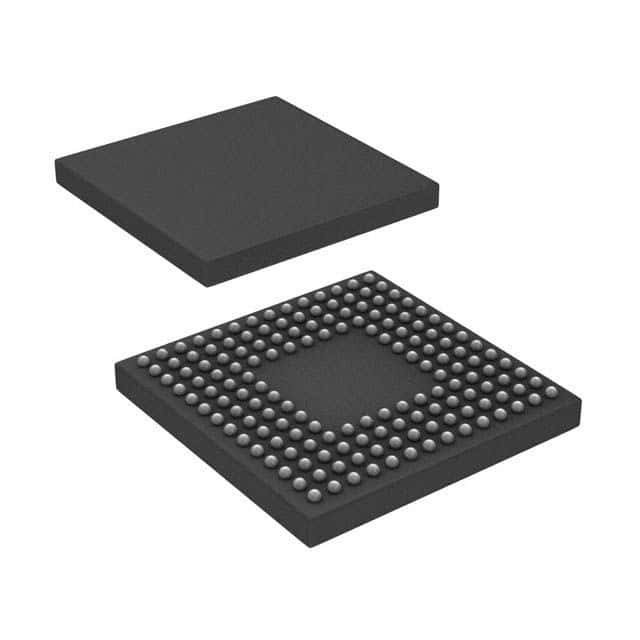

400 MHz Digital Signal Processor (DSP) featuring a 16-bit Blackfin core architecture. This surface mountable, BGA-packaged processor operates at a maximum frequency of 400MHz, with a minimum supply voltage of 800mV and a maximum of 3.6V. It includes 32KB of RAM and 84KB of ROMless memory, supporting interfaces such as SPI, SSP, UART, and Serial. Operating within a temperature range of -40°C to 85°C, this component offers 4 timers/counters, 1 SPI channel, 1 UART channel, and 1 USB channel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADSP-BF532SBBCZ400 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADSP-BF532SBBCZ400 technical specifications.
| Package/Case | BGA |
| Core Architecture | Blackfin |
| Data Bus Width | 16b |
| Frequency | 400MHz |
| Height | 1.31mm |
| Interface | SPI, SSP, UART, Serial |
| Lead Free | Contains Lead |
| Length | 12.1mm |
| Max Frequency | 400MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 84KB |
| Memory Type | ROMless, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 800mV |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of I/Os | 16 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Package Quantity | 189 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 32KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Blackfin® |
| Termination | SMD/SMT |
| Width | 12.1mm |
| RoHS | Compliant |
