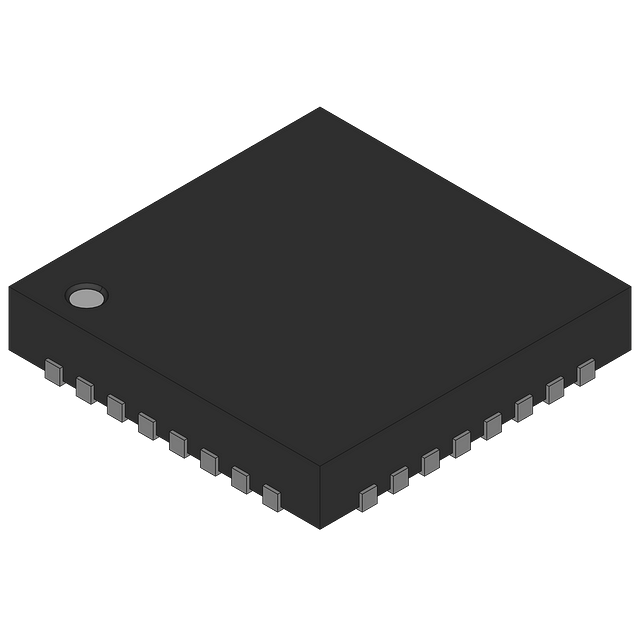

Automotive precision battery sensor IC featuring an ARM core and 16-bit resolution. This integrated circuit operates with a 3.5V to 18V supply voltage, a 20MHz frequency, and supports SPI and LIN interfaces. It includes 64KB of FLASH and EEPROM memory, 4KB of RAM, and two timers/counters. Packaged in LFCSP EP for surface mounting, this component is RoHS compliant and operates from -40°C to 115°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADUC7039WBCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Core Architecture | ARM |
| Data Bus Width | 16b |
| Evaluation Kit | Yes |
| Frequency | 20MHz |
| Interface | SPI, LIN |
| Lead Free | Contains Lead |
| Max Frequency | 32kHz |
| Max Operating Temperature | 115°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 18V |
| Memory Size | 64KB |
| Memory Type | FLASH, , EEPROM |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 10mA |
| Number of I/Os | 6 |
| Number of Programmable I/O | 6 |
| Number of Timers/Counters | 2 |
| Operating Supply Current | 10mA |
| Oscillator Type | Internal |
| Package Quantity | 490 |
| Packaging | Tray |
| Peripherals | POR, WDT, Temp Sensor |
| RAM Size | 4KB |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 1KS/s |
| Series | AUTOMOTIVE |
| Watchdog Timer | Yes |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADUC7039WBCPZ to view detailed technical specifications.
