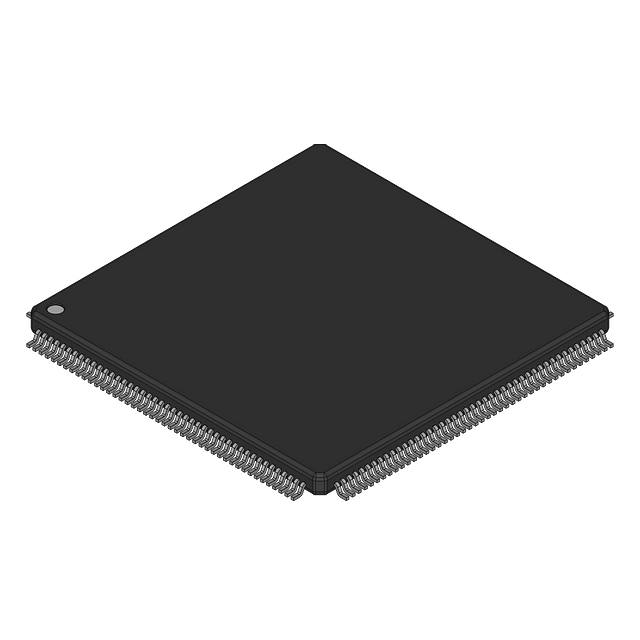

The ADV3201ASWZ is a dual analog switch from Analog Devices, with a bandwidth of 300MHz. It operates on a single or dual supply voltage of up to 2.5V, with a maximum output voltage of 1.2V. The device is packaged in a lead-free LQFP package, measuring 24mm in length and 24mm in width, with a height of 1.4mm. The operating temperature range is from -40°C to 85°C. The device is RoHS compliant and does not contain lead.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADV3201ASWZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADV3201ASWZ technical specifications.
| Bandwidth | 300MHz |
| Package/Case | LQFP |
| Control Interface | SERIAL |
| Dual Supply Voltage | 3.3V |
| Height | 1.4mm |
| Lead Free | Contains Lead |
| Length | 24mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 1.2V |
| Max Supply Voltage | 2.5V |
| Min Supply Voltage | 2.5V |
| Operating Supply Current | 260mA |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 400V/µs |
| Supply Type | Single, Dual |
| Weight | 0.06701oz |
| Width | 24mm |
| RoHS | Compliant |
