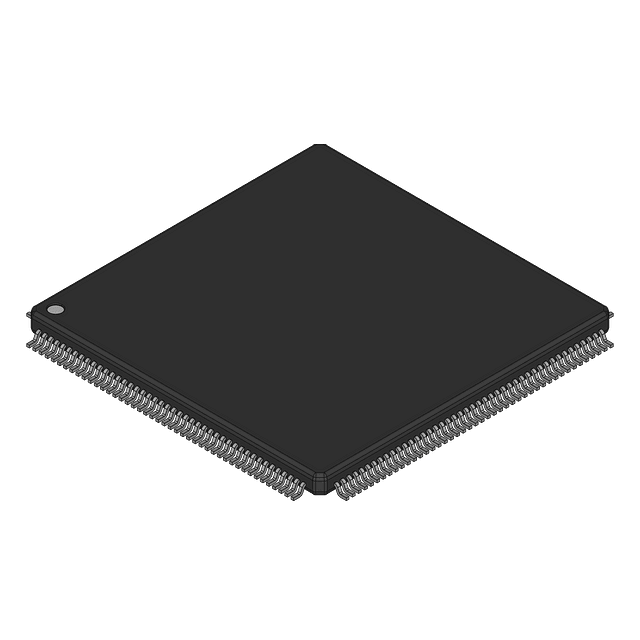

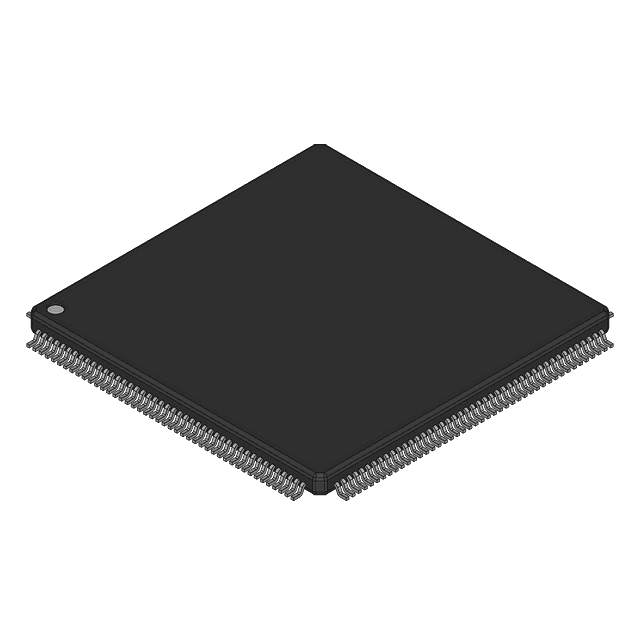

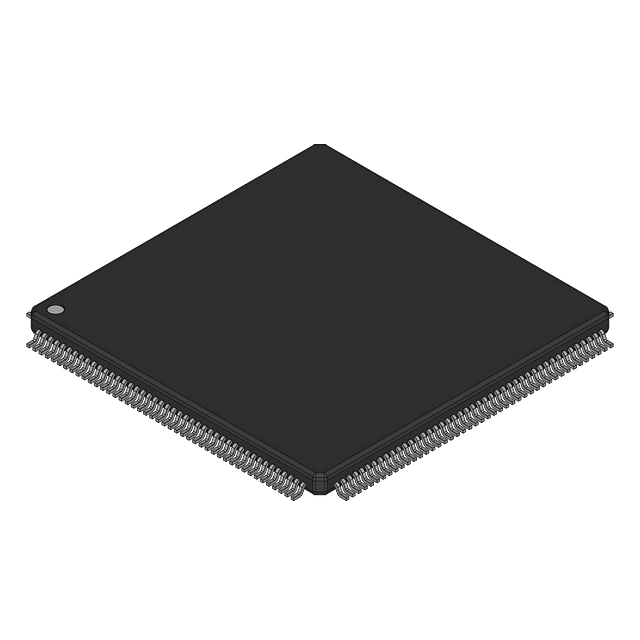

Analog Video 150MHz 32 x 16 176-Pin LQFP EP Tray
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADV3203ASWZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADV3203ASWZ technical specifications.
| Bandwidth | 300MHz |
| Package/Case | LQFP |
| Dual Supply Voltage | 3.3V |
| Height | 1.4mm |
| Lead Free | Contains Lead |
| Length | 24mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 1.2V |
| Max Supply Voltage | 2.5V |
| Min Supply Voltage | 2.5V |
| Operating Supply Current | 200mA |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Slew Rate | 400V/µs |
| Supply Type | Single, Dual |
| Width | 24mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADV3203ASWZ to view detailed technical specifications.
