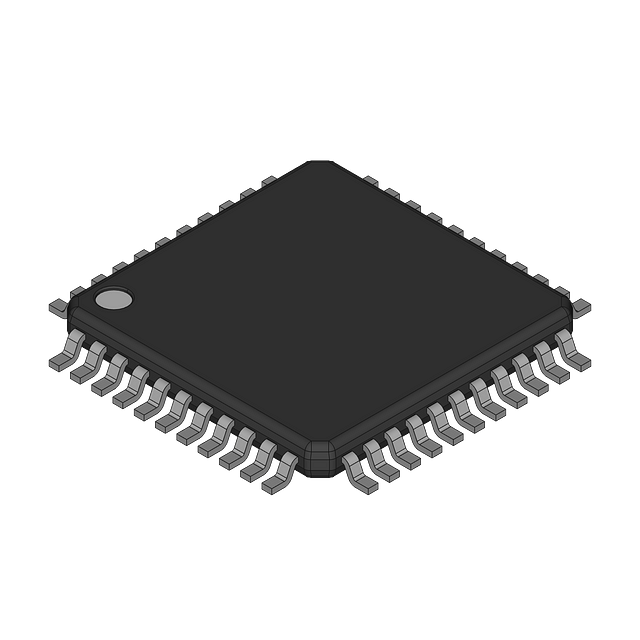

The ADV7171KSUZ is a 10-bit 4-channel video processing IC from Analog Devices. It operates over a temperature range of -40°C to 85°C and is supplied with a voltage of 5V. The IC has a resolution of 10 bits and features 4 channels. It is packaged in a TQFP package and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADV7171KSUZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADV7171KSUZ technical specifications.
| Package/Case | TQFP |
| Contact Plating | Tin, Matte |
| Frequency | 27MHz |
| Height | 1mm |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of A/D Converters | 9999 |
| Number of Bits | 10 |
| Number of Channels | 4 |
| Number of D/A Converters | 4 |
| Operating Supply Current | 155mA |
| Operating Supply Voltage | 5V |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Width | 10mm |
| RoHS | Compliant |
