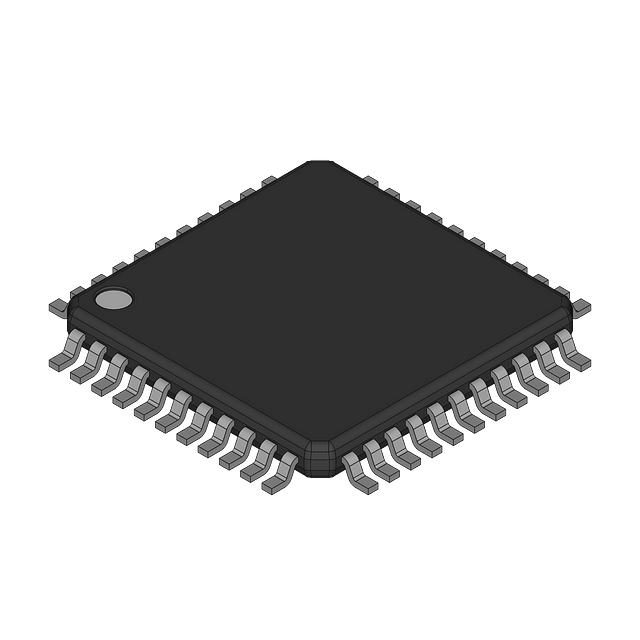

The ADV7171KSUZ-REEL is a 4-channel video processing IC with a resolution of 10 bits and an operating frequency of 27MHz. It is packaged in a TQFP package and is designed for surface mount applications. The IC operates within a temperature range of -40°C to 85°C and has a maximum supply voltage of 5.25V and a minimum supply voltage of 4.75V. It consumes an operating supply current of 150mA and is available in a tape and reel packaging format with 1500 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADV7171KSUZ-REEL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADV7171KSUZ-REEL technical specifications.
| Package/Case | TQFP |
| Frequency | 27MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of D/A Converters | 4 |
| Operating Supply Current | 150mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Resolution | 10b |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADV7171KSUZ-REEL to view detailed technical specifications.
