10-bit, 1-ADC video decoder IC featuring 3 channels and 6 inputs. Surface mountable in a 40-pin LFCSP EP package with Tin, Matte contact plating. Operates with a supply voltage of 1.8V (1.71V to 1.89V) and an interface supporting I2C. Maximum power dissipation is 250mW, with an operating supply current of 77mA. Suitable for applications within a -40°C to 85°C temperature range.
PackageLFCSP EP
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Analog Devices ADV7180BCPZ technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Height
0.83mm
Interface
I2C
Lead Free
Contains Lead
Length
6mm
Logic Function
Decoder
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
440uW
Max Supply Voltage
1.89V
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
10
Number of Channels
3
Number of Inputs
6
Operating Supply Current
77mA
Operating Supply Voltage
1.8V
Packaging
Tray
Power Dissipation
250mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADV7180BCPZ Datasheet
Download the complete datasheet for Analog Devices ADV7180BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

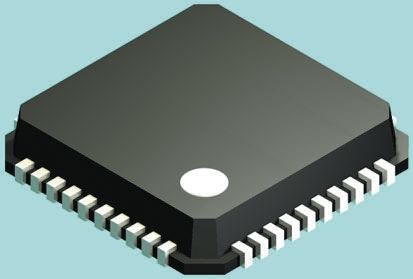

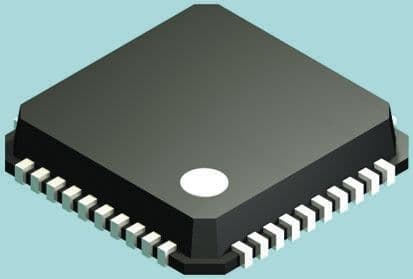

Product Images
