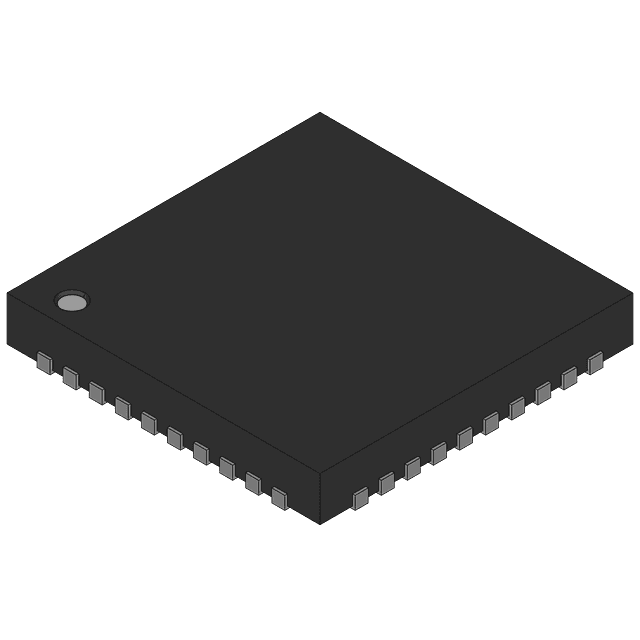

Triple 10-bit video encoder IC featuring three digital-to-analog converters. Supports analog video output with 10-bit resolution. Operates within a supply voltage range of 2.6V to 3.63V, with a typical operating voltage of 3.3V. Features a maximum output current of 37mA and an operating supply current of 81mA. Designed for a wide operating temperature range from -40°C to 85°C. Packaged in a 40-pin LFCSP with tin-matte contact plating, supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADV7393BCPZ-REEL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADV7393BCPZ-REEL technical specifications.
| Contact Plating | Tin, Matte |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 37mA |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.6V |
| Number of Bits | 10 |
| Number of Channels | 3 |
| Number of D/A Converters | 3 |
| Operating Supply Current | 81mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Resolution | 10b |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADV7393BCPZ-REEL to view detailed technical specifications.
