10-bit, 170MS/s video decoder and graphics digitizer with integrated 2:1 multiplexed HDMI/DVI interface. This specialized IC supports multiformat SDTV/HDTV video decoding and RGB graphics digitization, featuring 4 analog-to-digital converters and 12 channels. Packaged in an LQFP with tin, matte contact plating, it operates from a 1.71V to 1.89V supply voltage, with a typical 1.8V and 140mA supply current. Designed for surface mounting, this component offers a wide operating temperature range from -40°C to 85°C.
PackageLQFP
Current140mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADV7441ABSTZ-5P technical specifications.
General
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Height | 1.45mm |
| Lead Free | Contains Lead |
| Length | 20.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.89V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of A/D Converters | 4 |
| Number of Bits | 10 |
| Number of Channels | 12 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 170MS/s |
| Series | Advantiv® |
| Supply Current | 140mA |
| Width | 20.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADV7441ABSTZ-5P Datasheet
Download the complete datasheet for Analog Devices ADV7441ABSTZ-5P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

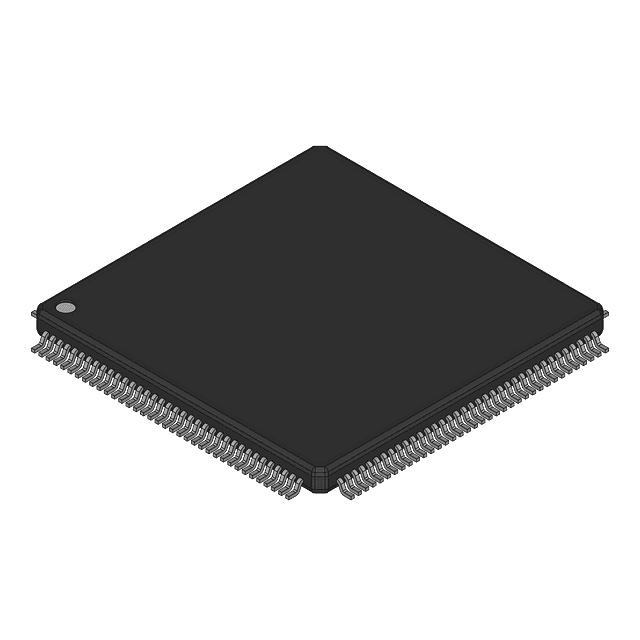

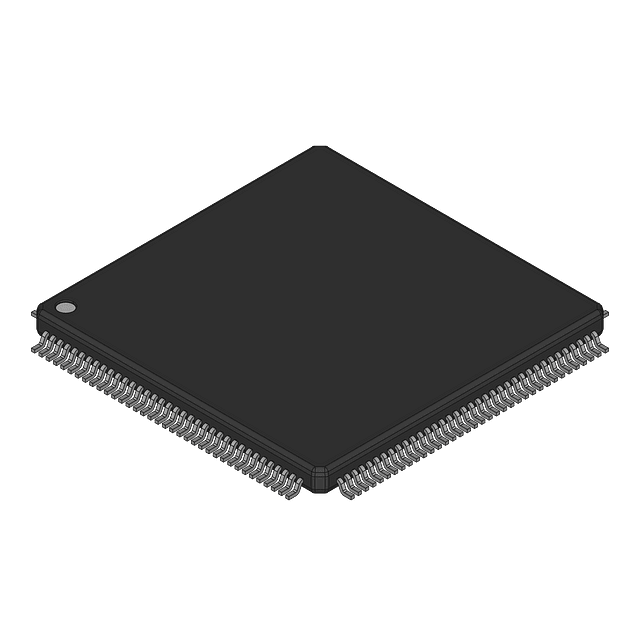

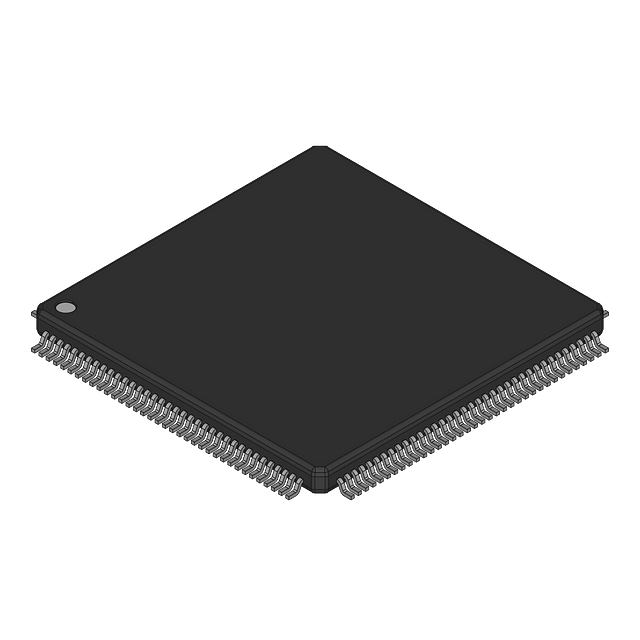

Product Images
