The ADV7511WBSWZ-RL is an 8-channel analog-to-digital converter with a resolution of 12 bits and a sampling rate of 225MS/s. It operates from a 3.3V supply voltage and is packaged in a 64-pin LQFP package. The device is surface mount and is available in a tape and reel packaging configuration. The operating temperature range is from 0°C to 70°C. The ADV7511WBSWZ-RL is RoHS compliant.
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADV7511WBSWZ-RL technical specifications.
General
| Package/Case | LQFP |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Channels | 8 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 225MS/s |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADV7511WBSWZ-RL Datasheet
Download the complete datasheet for Analog Devices ADV7511WBSWZ-RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

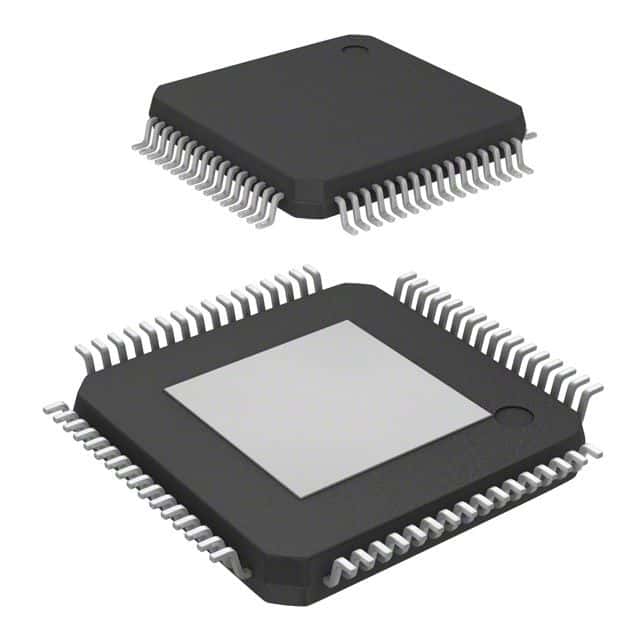

Product Images
