Dual port HDMI receiver IC featuring Xpressview technology and 3 GHz bandwidth. Supports 8-bit resolution and a 300 MS/s sampling rate. Operates with supply voltages between 1.71V and 1.89V, with a maximum dual supply voltage of 3.46V. Interface options include I2C and HDMI. Surface mountable in a TQFP package with dimensions of 14.2mm x 14.2mm x 1.05mm.
Frequency297MHz
PackageTQFP
Current268mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADV7619KSVZ-P technical specifications.
General
| Package/Case | TQFP |
| Frequency | 297MHz |
| Height | 1.05mm |
| Interface | I2C, HDMI |
| Lead Free | Contains Lead |
| Length | 14.2mm |
| Logic Function | Receiver |
| Max Dual Supply Voltage | 3.46V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.89V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Receivers | 1 |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 300MS/s |
| Series | Advantiv®, Xpressview™ |
| Supply Current | 268mA |
| Width | 14.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADV7619KSVZ-P Datasheet
Download the complete datasheet for Analog Devices ADV7619KSVZ-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

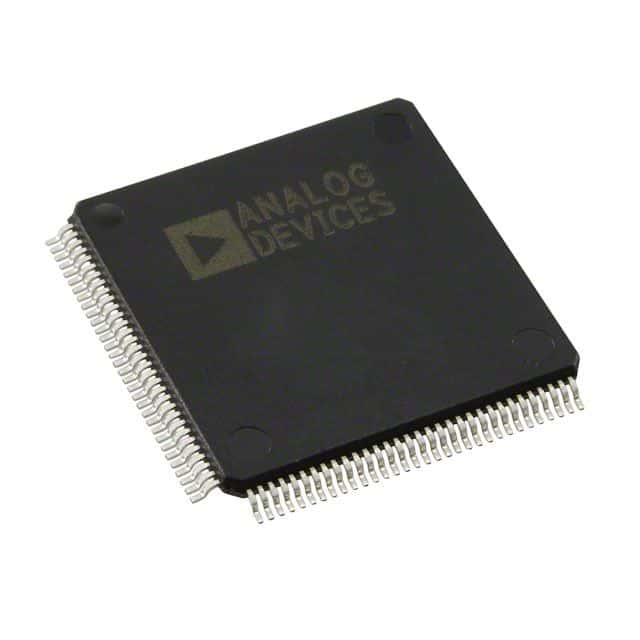

Product Images
