Analog Devices
ADV7842KBCZ-5P
Dual HDMI 1.4 Fast Switching Receiver with 12-Bit, 170 MHz Video and Graphics Digitizer and 3D Comb Filter Decoder
Frequency170MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADV7842KBCZ-5P technical specifications.
General
| Package/Case | BGA |
| Frequency | 170MHz |
| Height | 1.1mm |
| Interface | I2C, Serial |
| Lead Free | Contains Lead |
| Length | 17.2mm |
| Logic Function | Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 3.4V |
| Min Supply Voltage | 3.2V |
| Mount | Surface Mount |
| Number of Channels | 8 |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Advantiv®, Xpressview™ |
| Width | 17.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADV7842KBCZ-5P Datasheet
Download the complete datasheet for Analog Devices ADV7842KBCZ-5P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

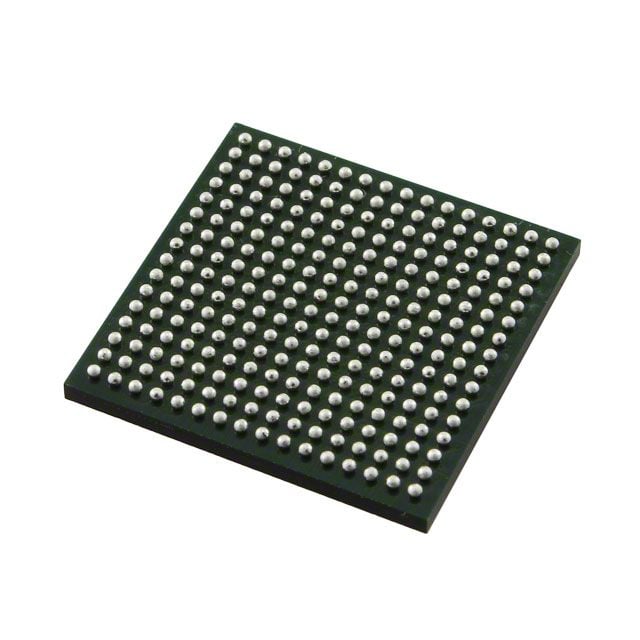

Product Images
