Analog Devices

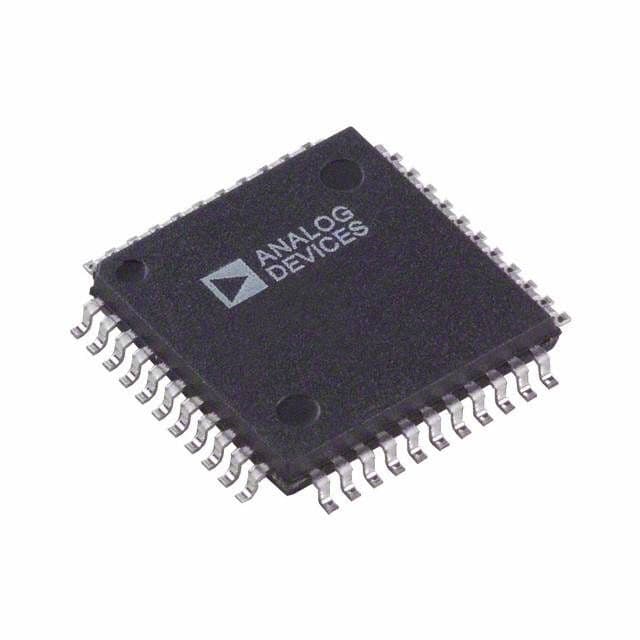

ADW71205WSTZ
Resolver to Digital 12bit Parallel/Serial (3-Wire, SPI) ±22arcmin Automotive 44-Pin LQFP Tray
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADW71205WSTZ technical specifications.
General
Package/Case
LQFP
Contact Plating
Tin, Matte
Height
1.4mm
Interface
Serial, Parallel
Lead Free
Contains Lead
Length
10mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Operating Supply Voltage
5V
Package Quantity
160
Packaging
Tray
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Supply Type
Analog, Digital
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADW71205WSTZ Datasheet
Download the complete datasheet for Analog Devices ADW71205WSTZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
