Dual-axis accelerometer with analog output, offering a ±5g measurement range. Features a sensitivity of 296mV/g to 328mV/g and a -3dB bandwidth of 2.5kHz. Operates from a 4.75V to 5.25V supply with a nominal current draw of 700µA. Encased in a leaded 8-pin CDIP package, this component is RoHS compliant and suitable for operation between -40°C and 175°C.
PackageCDIP
Current700nA
Quick Jump:
Technical Specifications
Analog Devices ADXL206HDZ technical specifications.
General
-3db Bandwidth
2.5kHz
Axis
X, Y
Bandwidth
0.5Hz
Package/Case
CDIP
Depth
7.37mm
Height
2.95mm
Lead Free
Contains Lead
Length
13.21mm
Max Operating Temperature
175°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
700uA
Operating Supply Current
700uA
Output Type
Analog
Package Quantity
35
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
312mV/g
Series
iMEMS®
Supply Current
700nA
Width
7.57mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADXL206HDZ Datasheet
Download the complete datasheet for Analog Devices ADXL206HDZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

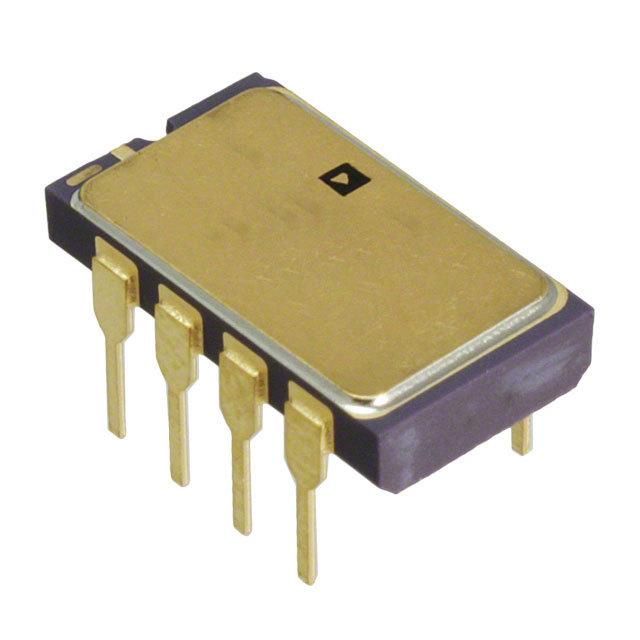

Product Images
